Aviation engines; design--construction--operation and repair; (1919)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley publishing co. · leaf 439

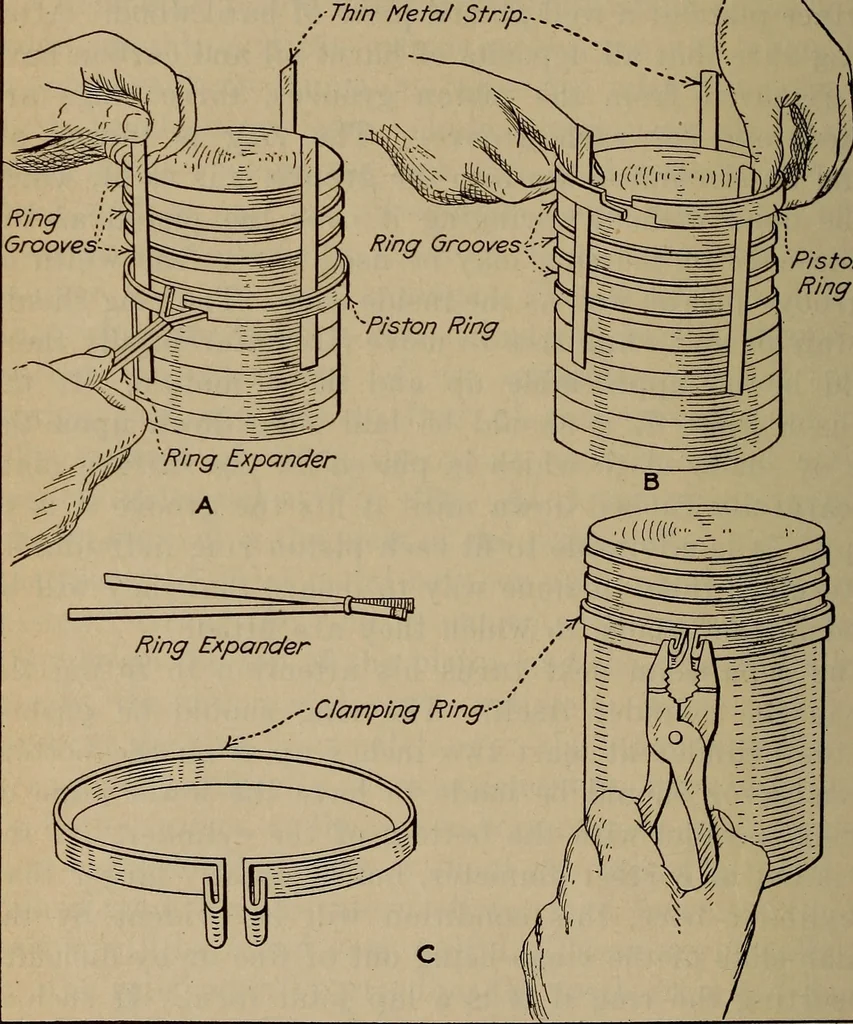

ges of the ring atthe slot until the edges come into line and a slight spaceexists between them when the ring is placed into the cylin-der. It is important that this space be left between the 440 Aviation Engines ends, for if this is not done when the ring becomes heatedthe expansion of metal may… … Fig. 186.—Method of Removing Piston Rings, and Simple Clamp to Facili-tate Insertion of Rings in Cylinder. made of cast iron, a metal that is very fragile and liableto break because of its brittleness. Special care shouldbe taken in replacing new rings as these members are Piston Ring Manipulation…
Airplanes
