Aviation engines; design--construction--operation and repair; (1919)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley publishing co. · leaf 548

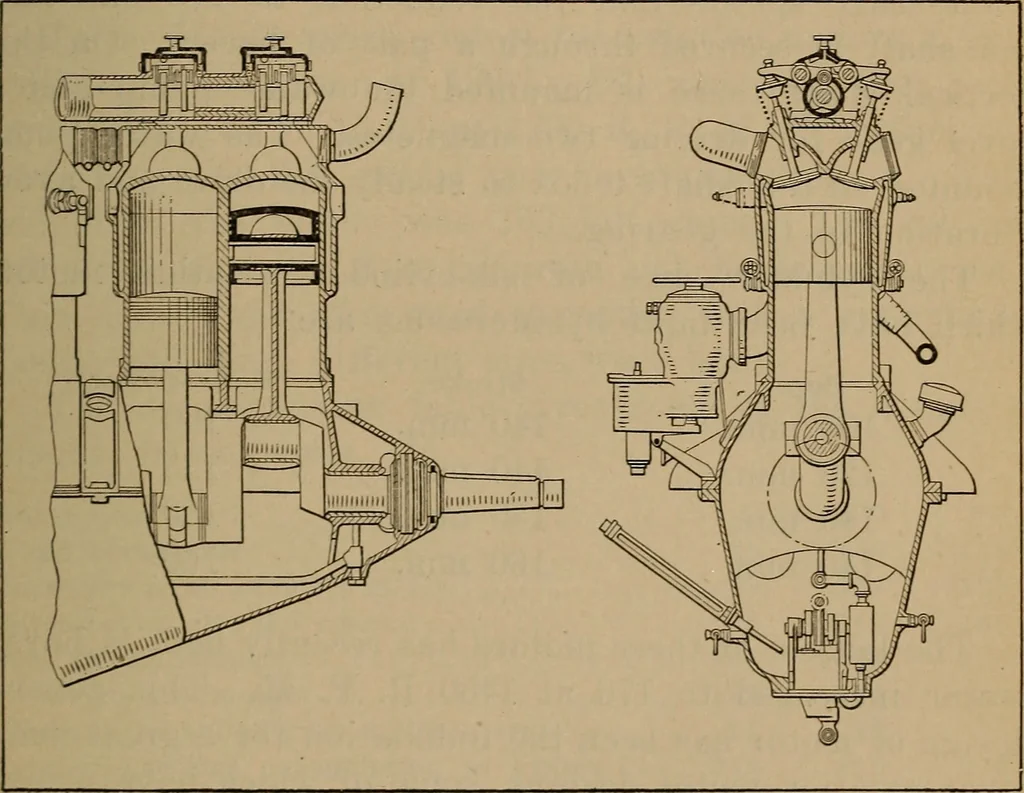

extent has cooled the oil inthe crank chamber and has itself been heated to assist Mercedes Engine Details 549 in the vaporization. The inlet pipes themselves are cop-per. All the passages between the ventnri throat andthe inlet valve have been carefully finished and polished.The only abnormal… … Fig. 245.—Part Sectional View of 90 Horse-Power Mercedes Engine,Which is Typical of the Design of Larger Sizes. possesses two very real virtues in that it cuts down heightof the motor and the piston passes over the bottom deadcenter much more slowly than with a long rod. Other features of the…
Airplanes
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
