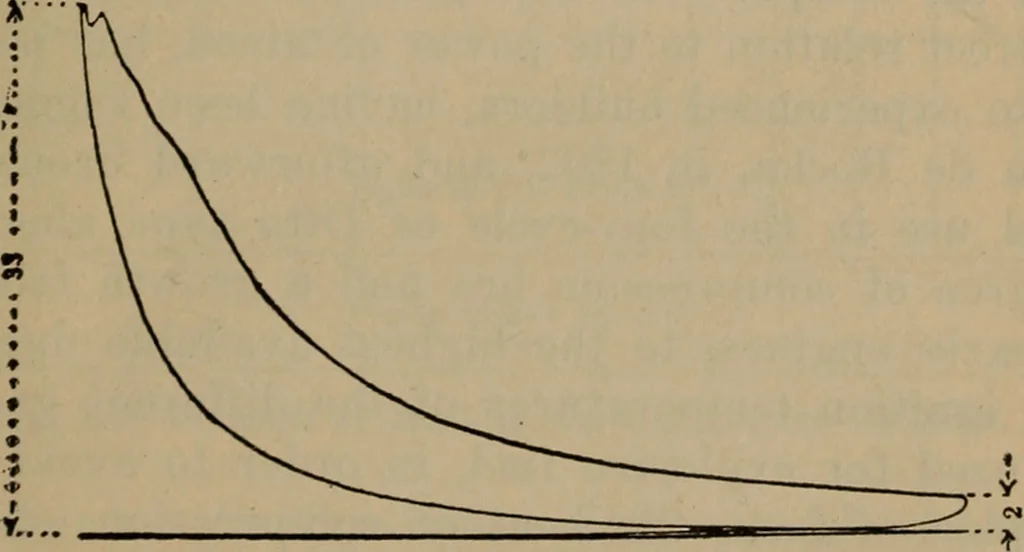

j<——TMslength isproporUonaUafh^siroke of Engine.—Fig. 13.—Otto Four-Cycle Card. upward almost straight, then as the piston goes down onthe explosion stroke, the pressure falls gradually to thepoint of exhaust valve, opening when the sudden releasedi the imprisoned gas causes a reduction in… … Fig. 14-.—Diesel Motor Card. them, will always show by its lines the normal or defectivecondition of the inlet valve and passages; the actual lineof compression; the firing moment; the pressure of ex-plosion; the velocity of combustion; the normal or defec-tive line of expansion, as measured by the…
