Aviation engines; design--construction--operation and repair; (1919)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley publishing co. · leaf 96

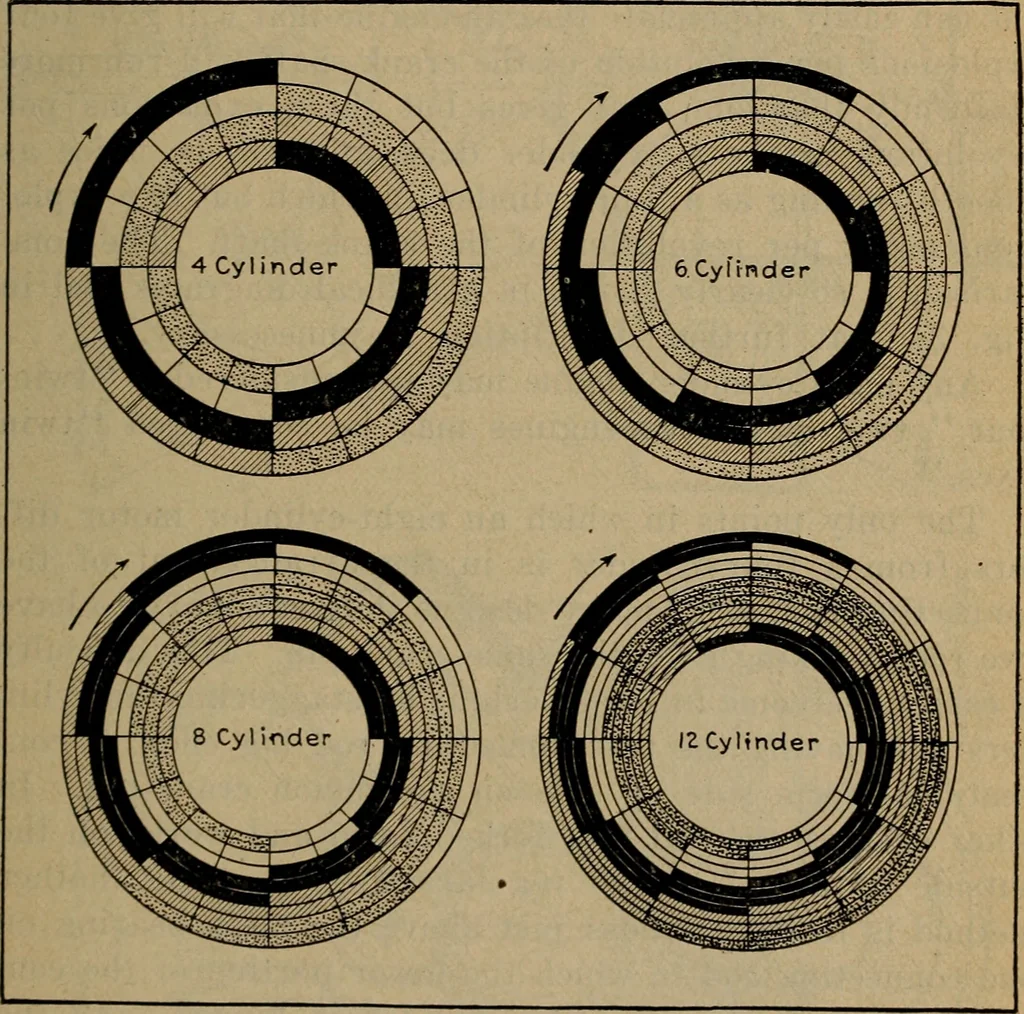

forms to the steady running produced bya steam turbine or electric motor. The advocates of theeight-cylinder engine bring up the item of uniform torque Vee Engine Advantages 97 as one of the most important advantages of the eight-cylinder design. A number of torque diagrams are shownat Fig. 30.… … Fig. 31—Diagrams Showing How Increasing Number of Cylinders Makesfor More Uniform Power Application. point in the line represents the period of greatest torqueor power generation, and it will be evident that this occursearly in the first revolution of the crank-shaft. Below thisdiagram is shown a…
