Bamboo work; comprising the construction of furniture, household fitments, and other articles in bamboo (1901)

Hasluck, Paul N. (Paul Nooncree), 1854-1931 · London, Paris, New York, Melbourne : Cassell and company, limited · leaf 105

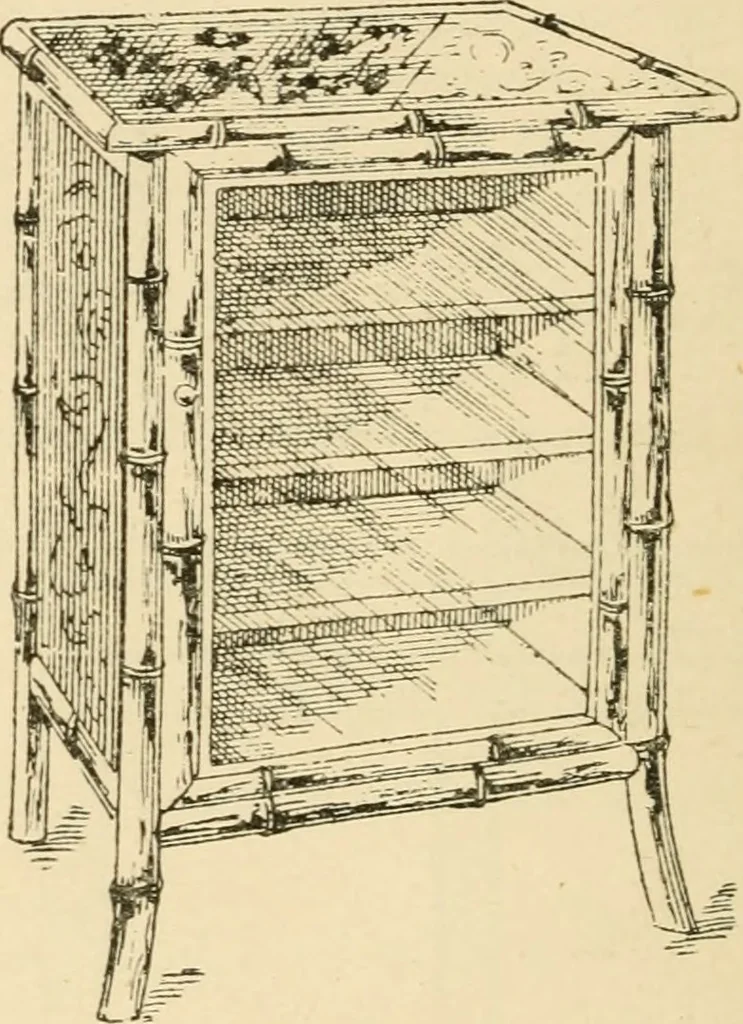

An illustration from Bamboo work; comprising the construction of furniture, household fitments, and other articles in bamboo, 1901, leaf 105 — rebate for the glass 104 Bamboo Work, should be formed with split black cane. The doorsare hinged on pins, which act as pivots. The con-struction of the upper portion of the work is verysimilar to that described for the making of an over-mantel illustrated by Figs. 152 and 154, pp. 135 and138. The… … Fig. 112.—Bamboo Music Cabinet. lowed on the rails for chisel-pointing and fitting.Care must be taken to get the sections perfectlysquare. They should be thoroughly tested with themeasuring lath. While the sections are setting, thefour side rails c (Fig. 113) should be fitted, and thewhole frame…

Bamboo · Woodwork

Internet Archive · Boston Public Library · Public Domain Mark 1.0. Free to use for anything.
