Bangerter's inventions; his marvelous time clock (1911)

[King, Everett Lincoln], 1863- ed. [from old catalog] · [New York, The McConnell printing co.] · leaf 32

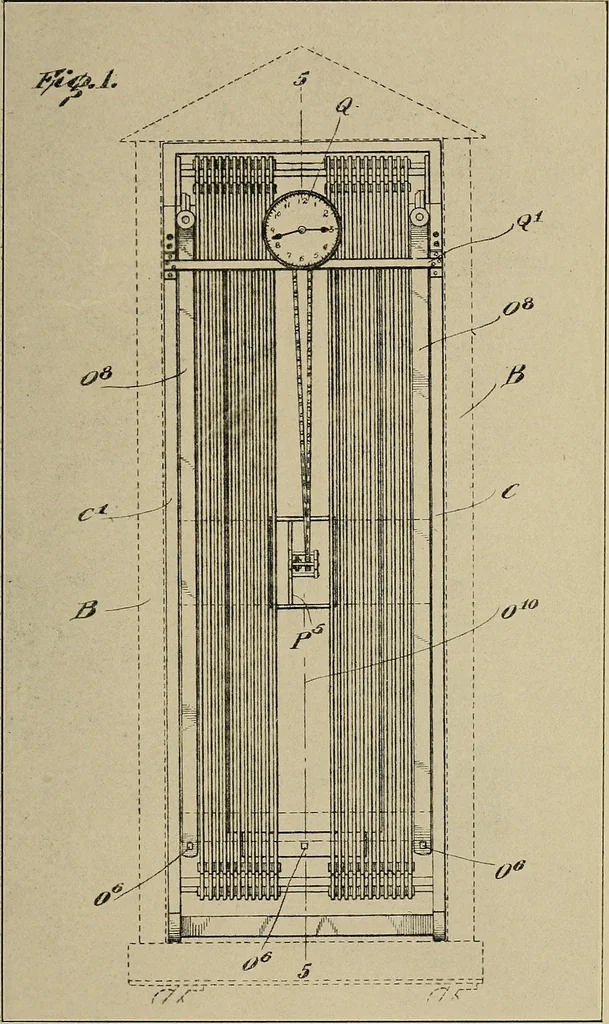

An illustration from Bangerter's inventions; his marvelous time clock, 1911, leaf 32
; Fig. 8 is an enlarged detail of the upper portion of theapparatus shown in Fig. 4, with parts removed; Fig. 9 is a perspective detail, partly broken away; Fig. 10 is an enlarged detail of a portion of theratchet mechanism shown in the lower portion of Figs.6 and 7; Fig. 11 is an enlarged section… … BANGERTERS PERPETUAL TIME CLOCK BANGERTERS PERPETUAL TIME CLOCK 33 Fig. 13 is a front elevation showing my invention ap-plied to another form of force storage mechanism; Fig. 14 is a plan view of same, on lines 14—14 ofFig. 13; Fig. 15 is a rear elevation on lines 15—15 of Fig. 14; Fig. 16 is a…

Bangerter, Friedrich, 1868 · Perpetual motion · Clocks and watches
