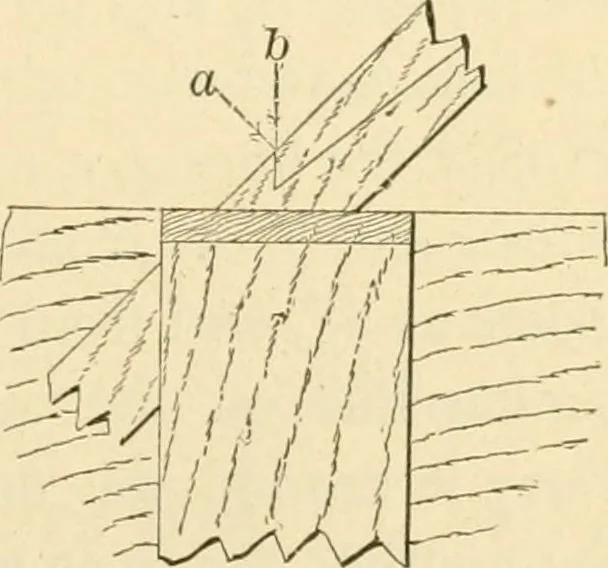

lines dj\ bk, gj, andik, and repeat these lines on face D. Connect points on bothB and D, forming lines which on B appear as bj and ij. The Fig. 188 portions marked r are to be removed. 163. To cut the joint, first use therip-saw on the lines bj and ij, andafterwards the back-saw on the… … 104 BENCH WORK IN WOOD. of its teeth, after which it may be turned into the desired di-rection b. The splayed ends dj and ik may be cut with the work onthe bench-hook, Fig. 189. By following the directions given inthe previous exercise the joint may be finished, as shown byFig. 187.
