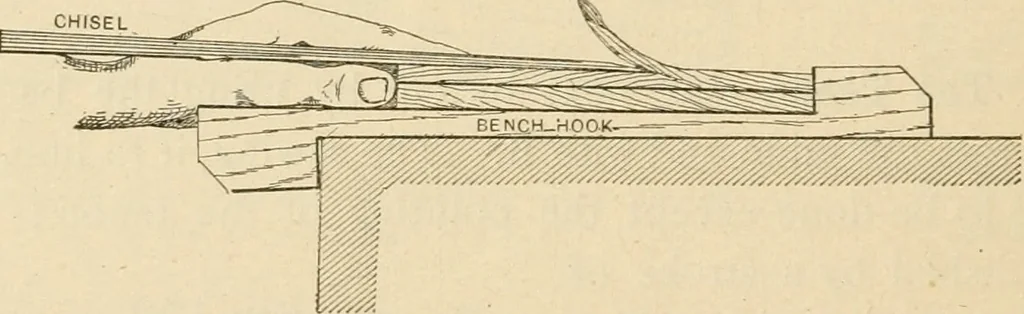

is satisfactory, borethe pin hole, insert the pin, cut off the projecting portion of thetenon and of the pin, and take a light shaving from those sur-faces on which a plane may be used. 167. To Make a Pin (249). — Select a piece of straight-grained material, in this case 4 or 5 long, and, by use of… … 195 end. All this will be best accomplished if the piece is heldby the bench-hook, as indicated by Fig. 194. 168. Drawboring is a term applied to a method of locating pin holes so as to makethe pin draw the tenoninto the mortise. Fig.195 shows the relativeposition of the holes be-fore the pin is…
