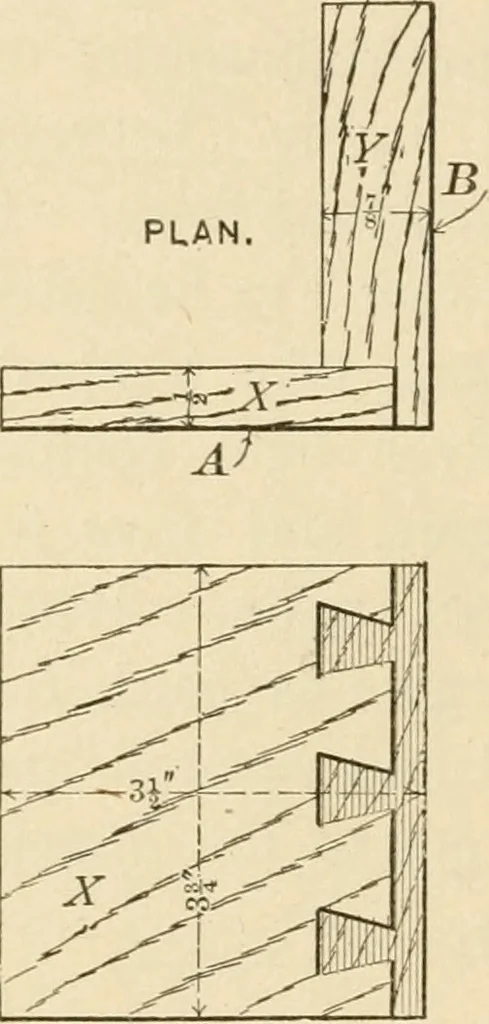

WORKING FACE^ H4 BENCH WORK IN WOOD. EXERCISE No. 12. — Lap, or Drawer, Dovetail. The stock required is one piece Fig. 201 Scale, 8 = l … X 3! X 4 and onepiece i x 3f X 4^edges jointed paralleland one end of eachsquared. The finishedpiece is shown by Fig.201. It will be seenthat the piece X doesnot extend across thefull thickness of thepiece Y, and, consequently, the end graindoes not ap-pear in Eleva-tion B, Fig.201.
