Bench work in wood; a course of study and practice designed for the use of schools and colleges (1905)
Goss, W. F. M. (William Freeman Myrick), 1859-1928 · Boston, New York, Ginn & company · leaf 138

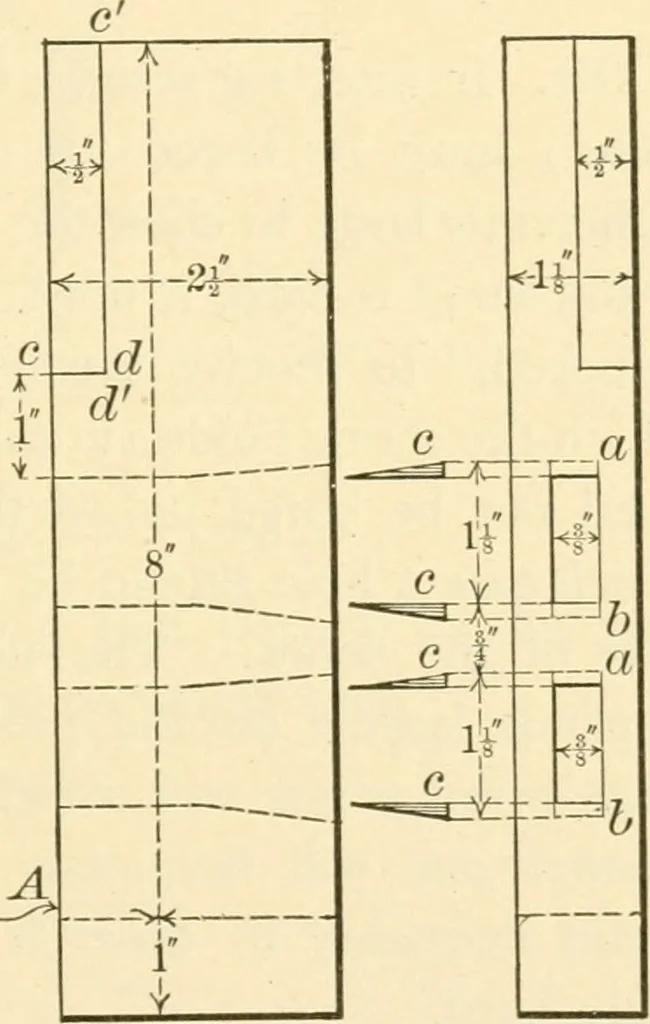

19 purpose of re-enforcing the end of the mortise during the fit-ting, — a recourse which must always be had when the mortisein the finished work closely approaches the end of the material.After all the jointing has been done, the horns may be cut off.Having laid off the necessary lines for cutting… … SIDE OF ST I LE EDGE ^4 OF STI LE Cut and fit the mortise and tenon, and then make bothchamfers, as shown in the finished piece, Fig. 212. 179. Short chamfers (222, 223) like these are best cut byuse of the chisel, a spokeshave sometimes being used in finishing. Long chamfers may be cut rapidly by…
Woodwork (Manual training)
