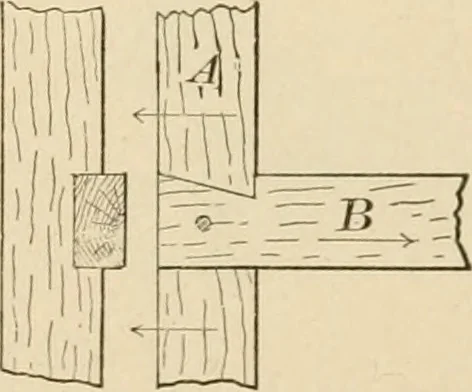

hown by Fig. 254, or the joint may bestrengthened by bolts or straps. The mortise for the joint shown by Fig. 253 is usually madeof the outline abe, and the triangle abe is not filled. This isdone because it is easier to cut down the line be than the lineae. There seems to be no objection to this… … _ ft ILL f\ ,A bridle joint, Fig. 256, is certainly worthy of study. The widthof the bridle, B, Fig. 255, should not exceed one-fifth thewidth of the timber. WOOD CONSTRUCTION. I 37 209. A Tie Joint is shown by Fig. 257. By the insertionof the tie B, the timber A is prevented from falling away…
