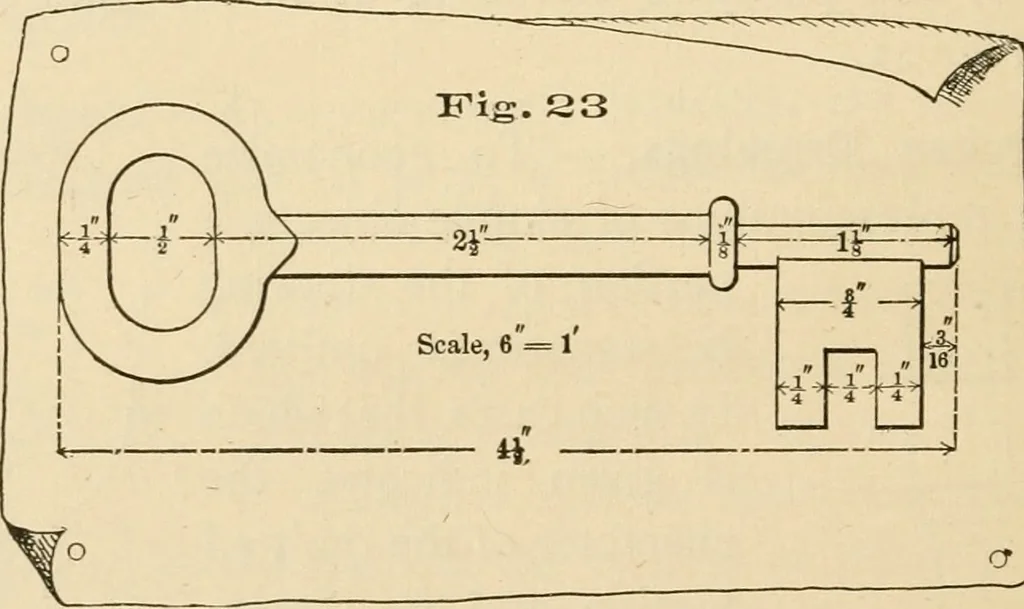

as two feet, and 2 as two inches. 12 71 the same as twelve feet and seven and three-quarters inches. The figures always show the dimensions of the thing repre-sented ; they do not agree with the dimensions of the drawingexcept when the latter is full-sized. See dimension figures inFig. 23. … Dimension lines.—Dimension figures are always placed on, ornear, lines along which they apply. In drawings these lines areusually in color (red), but may be dotted black, as in Fig. 23.When convenient, they are placed within the outline of thedrawing; but if the drawing is small or crowded, they…
