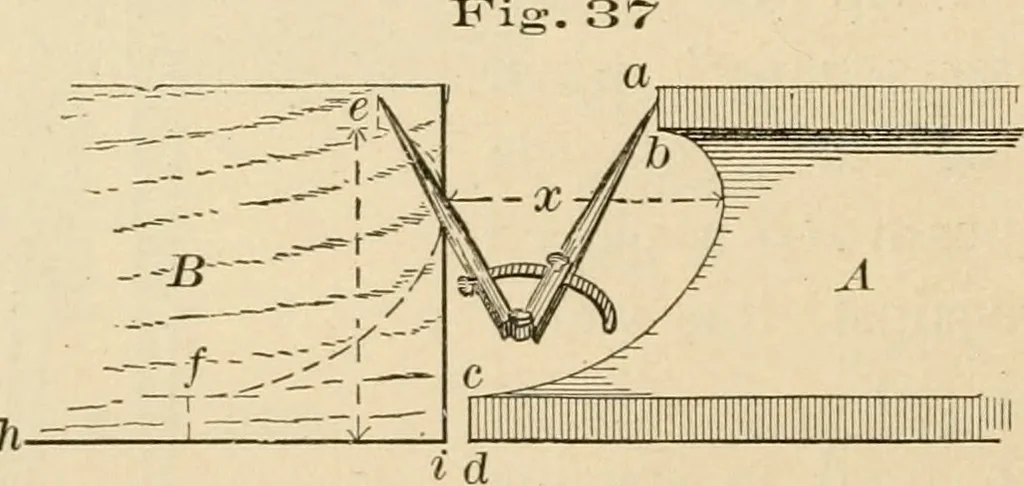

rom the surface F; and the table top, having been made parallel to F, itfollows that the linesscribed are parallel tothe top, or that thelength of the four legs,as defined by the lines,is the same. Example 2. — It is required to fit the end of a board B tothe outline abed ot A, Fig. 37. Place the… … BENCH TOOLS. 17 as shown. Cut to line, and the board will fit. When sharpangles, as at /, enter into the outline, greater accuracy willbe attained if the point / is located by measuring from thebase line hi.
