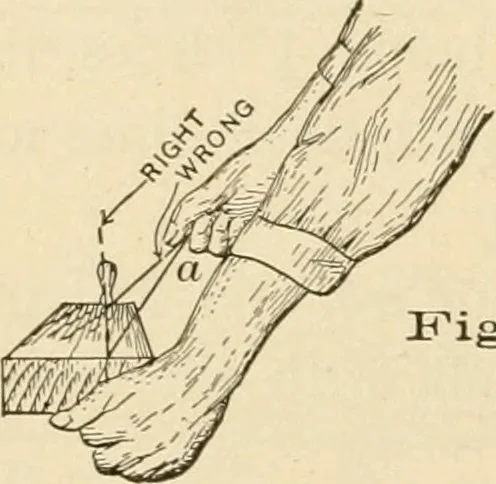

is inserted. Then raise the cord near the middle as shownby Fig. 140, and by suddenly releasing it, cause it to snap on the surface of the work. In snapping, the cord should bedrawn up vertically, for if drawn afran inclination as shown bya, Fig. 141, a wide blurred line willbe produced. Repeat… … g.141 Operations to be performed on Face B, from A as aWorking-Face, Fig. 137. 124. Lining with Pencil and Try-Square (22). — Holdthe beam of the square firmly against the working-face, and,using the outside edge of the blade as a guide, continue acrossface B the lines on the working-face which…
