Bench work in wood: a course of study and practice designed for the use of schools and colleges (1902)
Goss, W. F. M. (William Freeman Myrick), 1859-1928 · Boston, Ginn & company · leaf 113

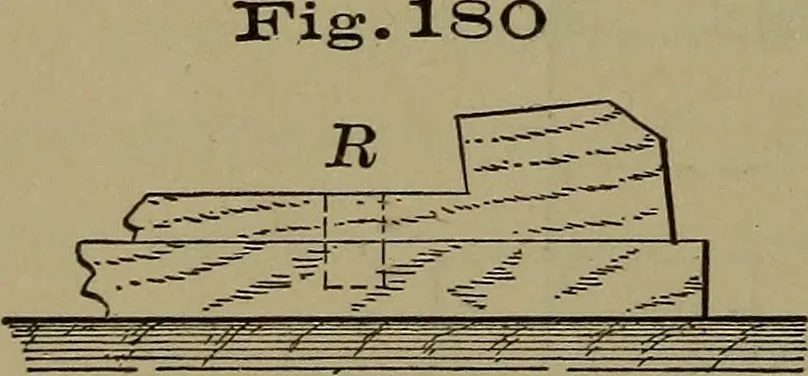

thestarting point. To prevent this, the bit may be used from one side until itsspur appears on the opposite side, and then withdrawn, andstarted in the opposite direction in the hole left by the spur; or the work may be held firmly toanother block, as shown by Fig. 180,and the bit allowed to pass… … EXERCISE No. 7. —Halved Splice (202-203). The stock required is if X if X 16 from Exercise No. 4;it is shown with the necessary lining, by Fig. 181. The com-pleted piece is shown by Fig. 182. BENCH WORK. 99 ??- if the width of thepiece), and from theworking-face A, gaugea Hne from b on faceB around…
Woodwork (Manual training)
