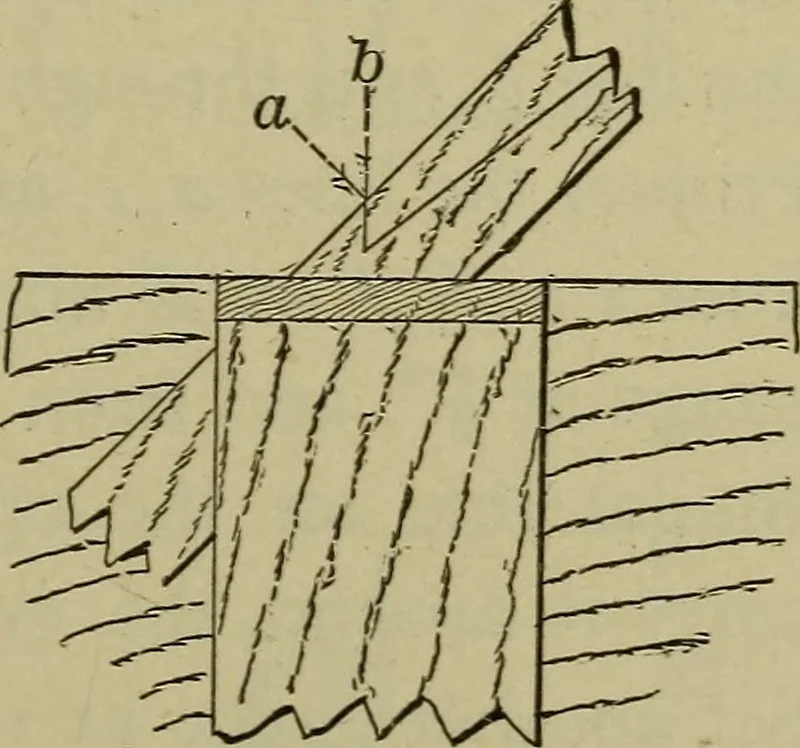

B hnes dj, bk, gf, andik, and repeat these lines on face D, Connect points on bothB and D, forming lines which on B appear as bj and ij\ Theportions marked r are to be removed. wi^^ iss 163. To cut the joint, first use therip-saw on the lines bJ and ij\ andafterwards the back-saw on the… … I04 BENCH WORK IN WOOD. of its teeth, after which it may be turned into the desired di-rection b. The splayed ends dj and ik may be cut with the work onthe bench-hook, Fig. 189. By following the directions given inthe previous exercise the joint may be finished, as shown byFig. 187.
