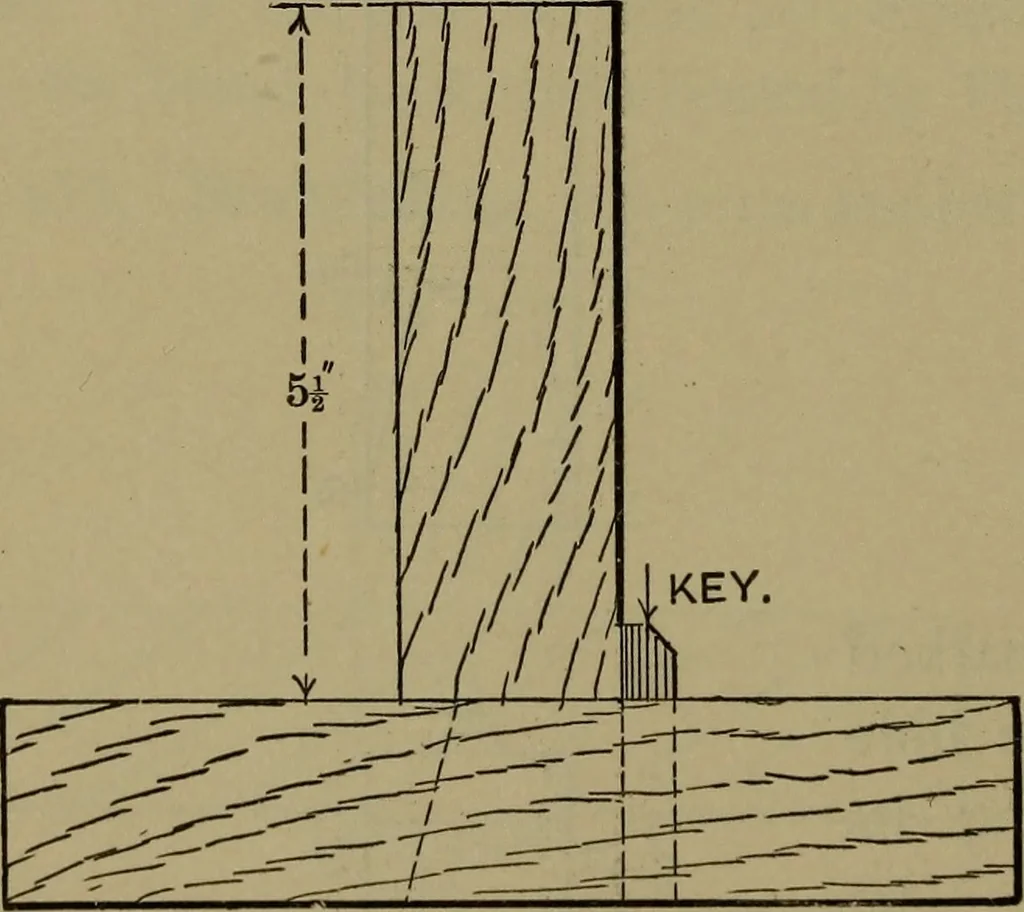

240-245). The stock required is if X if X 16, from Exercise No. 4; it is shown with the ne-cessary lining by Fig.196. The finished pieceis represented by Fig.197. 169. The lining dif-fers from that of thepreceding exercise inthe following respects:the position of the Hne^ is changed as indi-cated… … ELEVATION. as indicated by the dotted line BENCH WORK. Ill As regards the tenon, the Hne g is added at a distance fromd equal to the thickness of the piece on the Hne ^, face A;the point h is located on face A, and on the opposite face C,and the line g/i drawn on both faces. The mortise r is to…
