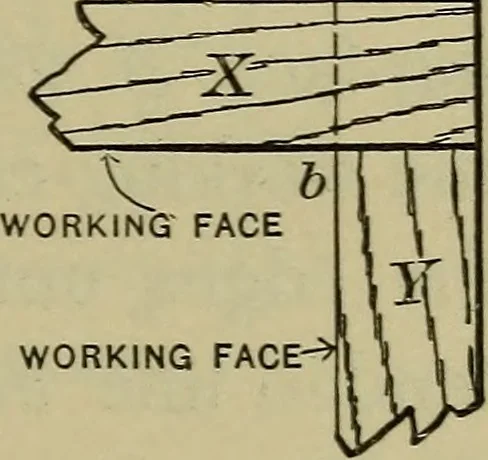

ELEVATION (A.) Fig. 200 … WORKING FACE-^ 114 BENCH WORK IN WOOD. Fig, 301Scale, 8-= l EXERCISE No. 12. — Lap, or Drawer, Dovetail. The stock required is one piece -|- X 3^ X 4 and one piece i X 3f X 4,edges jointed paralleland one end of eachsquared. The finishedpiece is shown by Fig.201. It will be seenthat the piece X…
