Bench work in wood: a course of study and practice designed for the use of schools and colleges (1902)
Goss, W. F. M. (William Freeman Myrick), 1859-1928 · Boston, Ginn & company · leaf 130

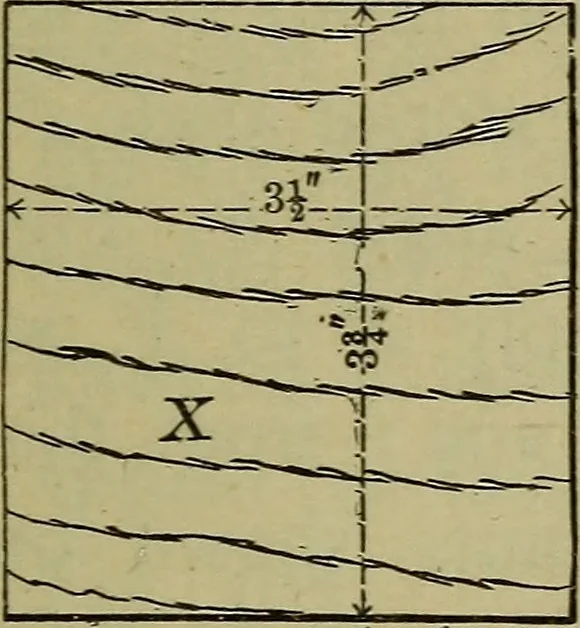

Blind Dovetail. The stock required is two pieces, each i X si X 4 edges jointed parallel and one end squared. The finished joint is shown by Fig. 203. The ELEVATION (FACE B.) dovetail iswhoUy with- in the square adcd, and, consequently, no end grain shows on any face. 175. With the square, lay off… … I ITig. 204 Scale, 8 = 1 5 ,6- ^^ ^ -^ Scale. Z^iPLAN (FACE DJ d .a D ^ajeb Uil d a> PLAN.- d a. ^ ELEVATION (FACE A.) ELEVATION-. ii6 BENCH WORK IN WOOD. Scale,, 3—j Cut both pieces as shown by Fig. 205. Taking one of thepieces, which will be called X, space ^ and lay off on the reducedend…
Woodwork (Manual training)
