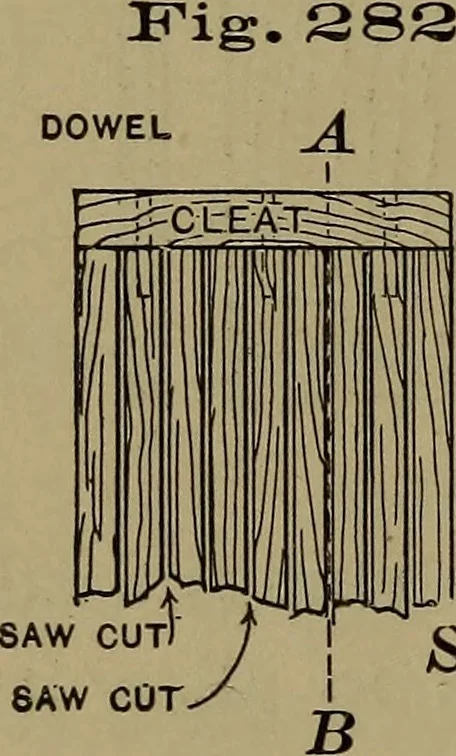

arrow tongue may be formedon the board to fit a corresponding groove in the cleat, asshown in connection with B^ Fig. 281. If only one surface of a cleated board is to be madeuse of,—a drawing board, for example,— the strain on the cleat may be les-sened by a succession of saw cuts on thelower… … Section A. B. Joints for uniting Pieces at Right Angles. 236. Butt-Joints. —A plain joint of this kind is representedby Fig. 283. The joint may be concealed by a bead, as indi-cated by dotted lines; and, when the material is thick and it isdesirable to prevent an exposure of end grain as much as…
