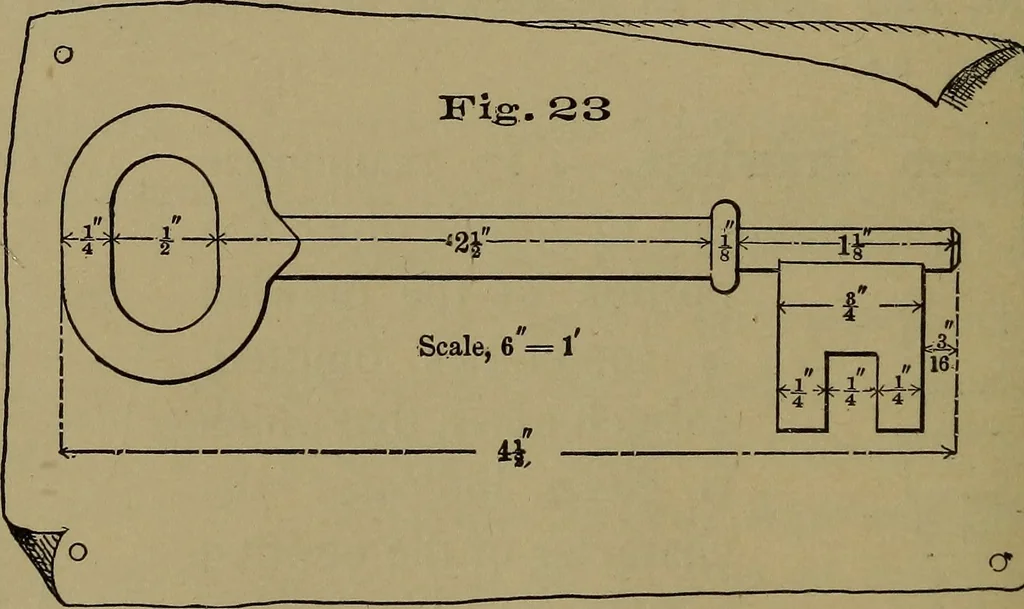

various dimensions of an object repre-sented are shown on the drawing by appropriate figures, whichFig. q;3 express feet when followed by , and inches when followed by ^\ Thus 2 should be readas two feet, and 2 as two inches. 12 yf is the same as twelve feet and seven and three-quarters inches. The… … Dimension lines,—Dimension figures are always placed on, ornear, lines along which they apply. In drawings these lines areusually in color (red), but may be dotted black, as in Fig. 23.When convenient, they are placed within the outline of thedrawing; but if the drawing is small or crowded, they…
