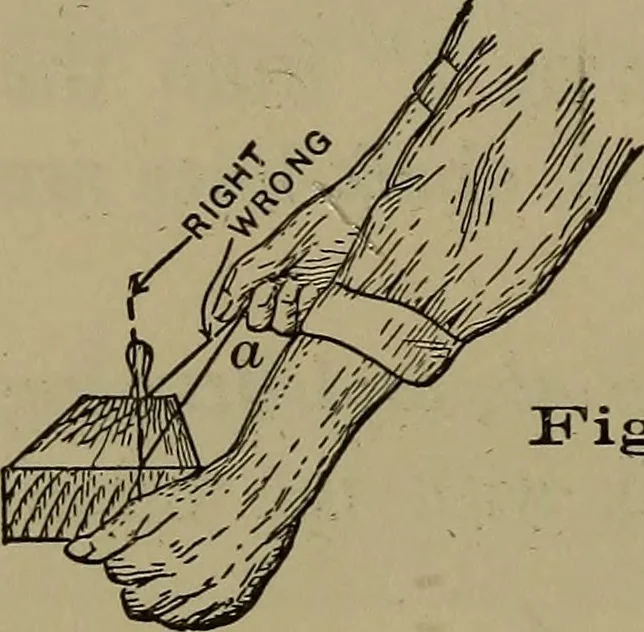

inserted. Then raise the cord near the middle as shownby Fig. 140, and by suddenly releasing it, cause it to ^^snap*on the surface of the work. In snapping, the cord should bedrawn up vertically, for if drawn at an inclination as shown by a, Fig. 141, a wide blurred line willbe produced. Repeat… … .141 Operations to be performed on Face B^ from ^ as aWorking-Face, Fig. 137. 124. Lining with Pencil and Try-Square (22). — Holdthe beam of the square firmly against the working-face, and,using the outside edge of the blade as a guide, continue acrossface B the lines on the working-face which were…
