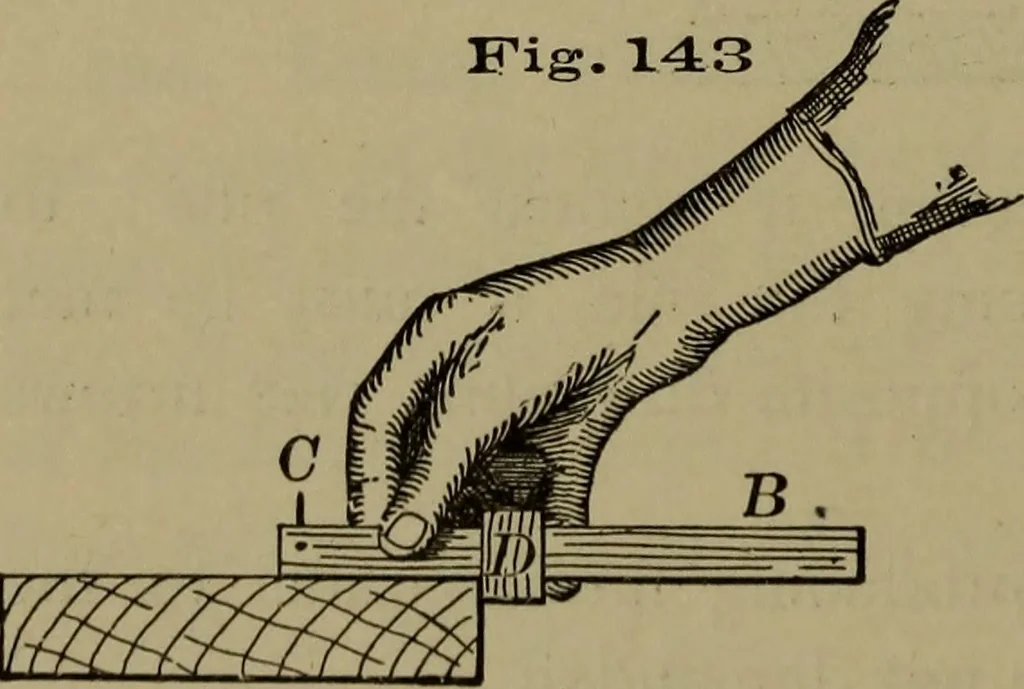

the scriber be turned in so much as tocrowd the square from its position. After a little practice, linescan be scribed easily and rapidly. 129. Lining with Scriber and Bevel. — Set the bevel at anangle of 45 degrees and, using it as before, scribe lines fromthe ends of the try-square lines, as… … BENCH WORK. 79 a steel spur Cy which does the marking. B also carries ahead D, which is adjustable on the beam. To use the gauge, adjust the head so that the distance be-tween it and the spur C is equal to that between the working-face and the required line; then close the fingers over thehead and…
