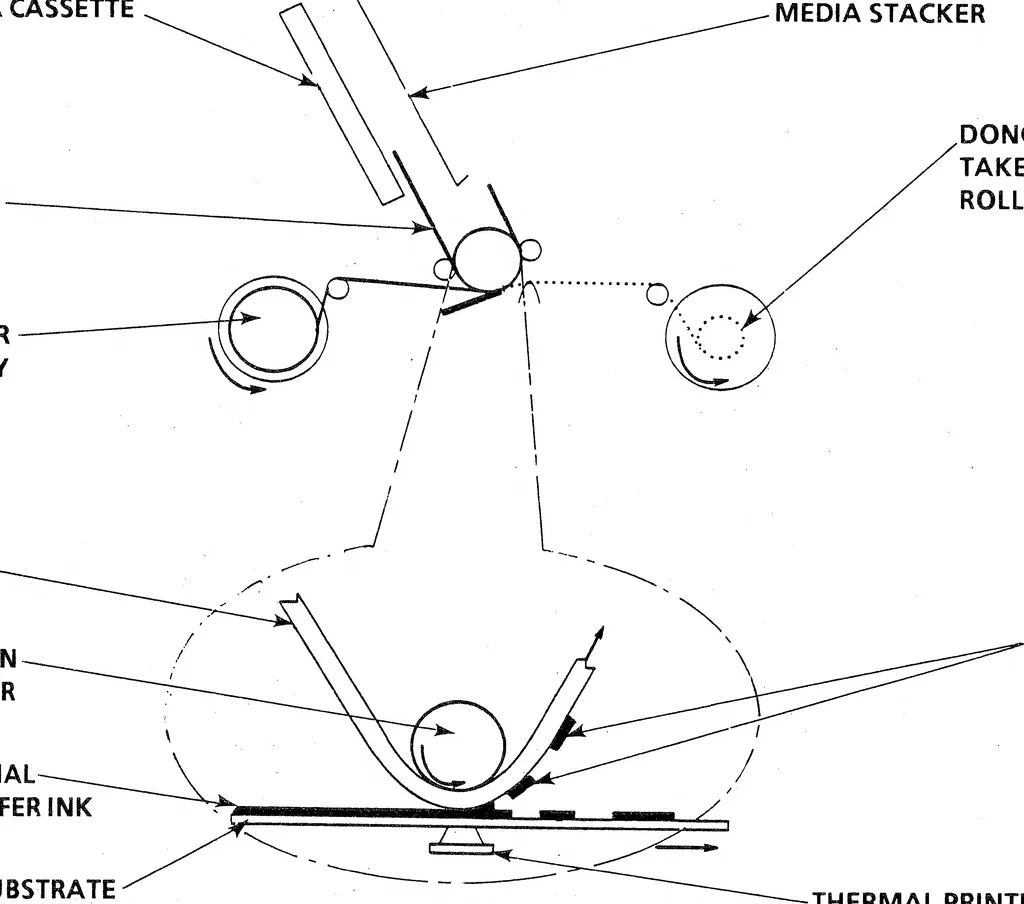

image from the yellow panel. The printheadlowers automatically and the media retracts at approximately 1.7in/sec to the plot starting position as the next color panel (magenta)is set in place. If a 3-color donor roll is used, the plotter makes afinal pass in cyan which, combined with yellow and… … MEDIA PLATENROLLER THERMALTRANSFER INK FILM SUBSTRATE PRINT THERMAL PRINTHEAD c Figure 1-1. Thermal Transfer Plotting Principles of Operation c 1-2 GENERAL INFORMATION HOW DOES THE PLOTTER FIT IN MY SYSTEM? The C2700 Series Plotter is connected to a controller providing aVersatec Parallel (also…
