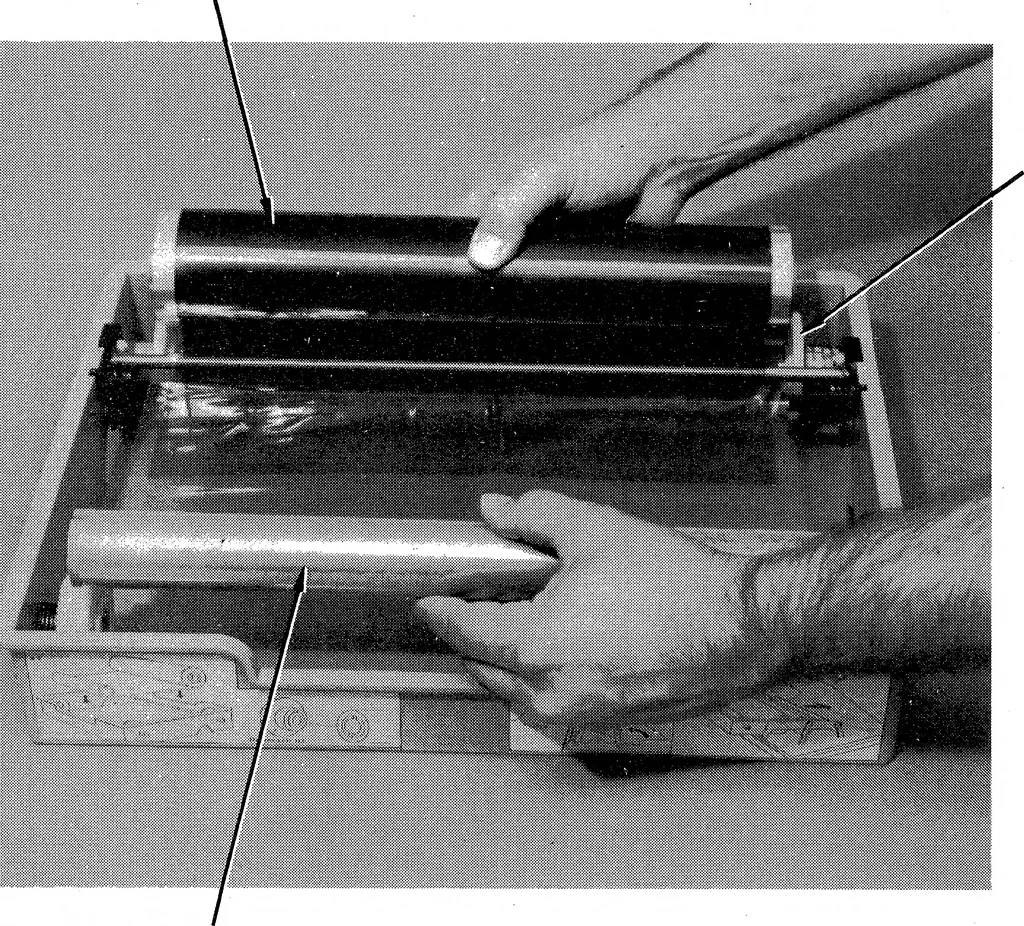

DONOR ROLLTRAY GUIDE Figure 3-3. Accessing the Donor Roll Tray C2700 SERIES THERMAL PLOTTER OPERATOR GUIDE 3-3 LOADING THE INK DONOR ROLL AND MEDIA Positioning the new ink donor roll as shown in Figure 3-4, pressthe right end of the supply roll onto the spring-loaded hub andslip the left end over… … SPRING-LOADEDROLL HUB TAKE-UP ROLL ( Figure 3-4. Mounting the Ink Donor Roll Pull the take-up roll across the tray to the side labeled FRONTSIDE OF PRINTER and mount the take-up roll on the hub and rollholder as in step 6 above. Standing at the front of the tray, rollthe top of the take-up roll…
