versatec :: 5990-01 C2700 Series Thermal Transfer Color Plotter Operator Guide Oct1986 (1919)
leaf 48

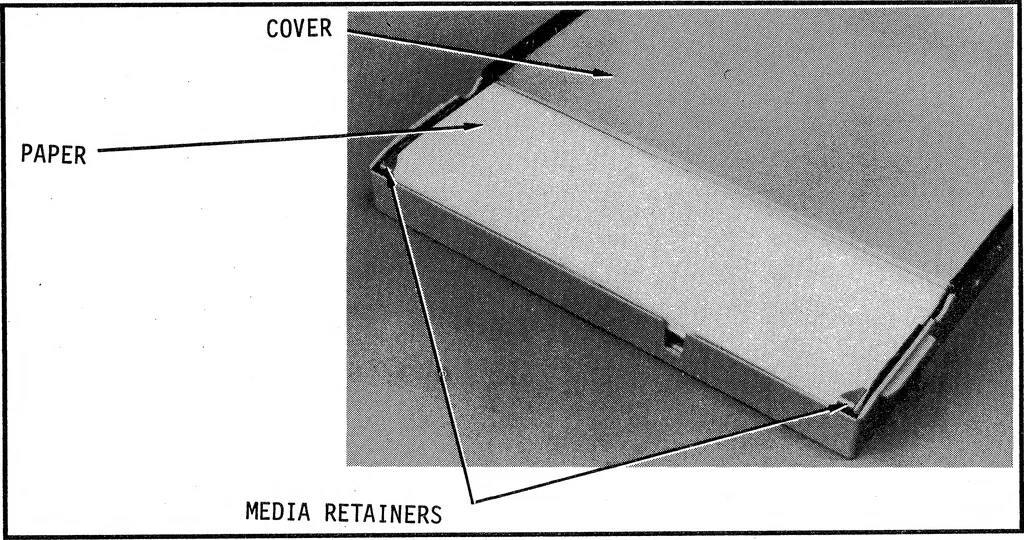

er, it is not necessary to use thelever. 5. Attach the cover to the media cassette and close. 6. Insert the media cassette into the media cassette mountingslot in the plotter chassis. Make sure it locks into place. 7. Check that the media stacker is mounted in place. Refer toFigure 3-10. 8. Press… … Figure 3-9. Loading Paper ( C 3-8 LOADING THE INK DONOR ROLL AND MEDIA MEDIASTACKER
