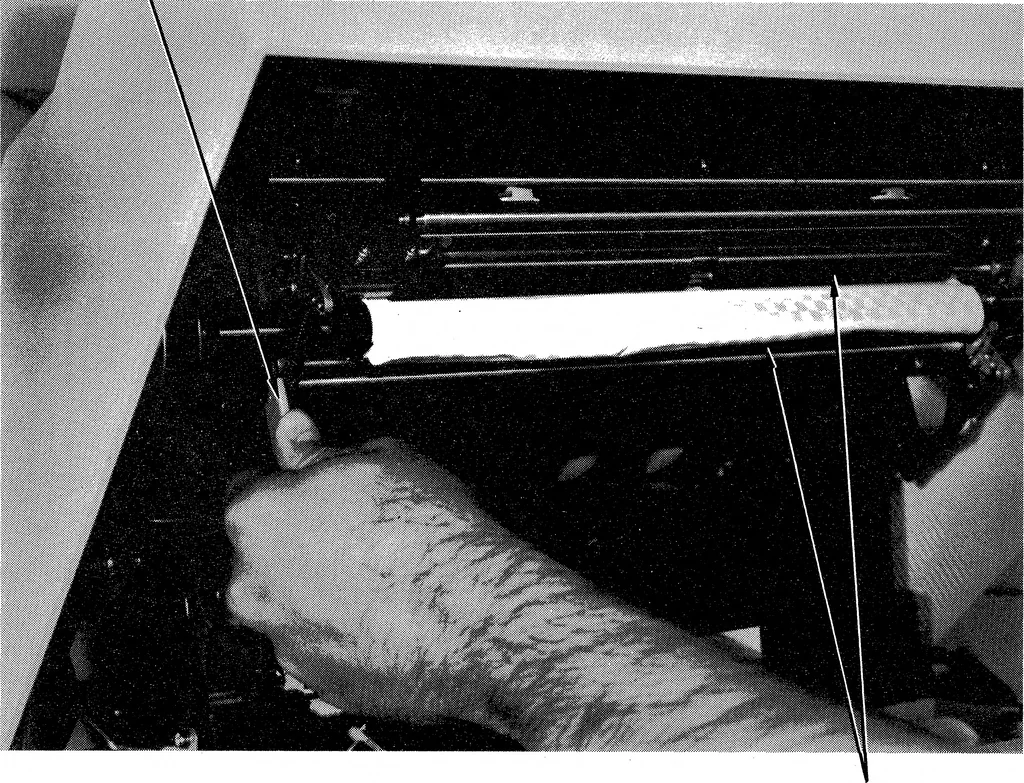

o resume normal operation. C2700 SERIES THERMAL PLOTTER OPERATOR GUIDE 6-9 IN CASE OF DIFFICULTY Recovering From a Paper Jam If a paper jam occurs during plotting, remove the jammed paperusing the following procedure. Note: Do not touch the surface of the rubber rollers withyour fingers. 1. Power… … Figure 6-9. Opening the Pinch Rollers PINCHROLLERS l! ( ( 6-10 IN CASE OF DIFFICULTY Remove the jammed paper by pulling it slowly toward you,away from the platen roller. See Figure 6-10. FRONT PINCH ROLLER PLATENROLLER
