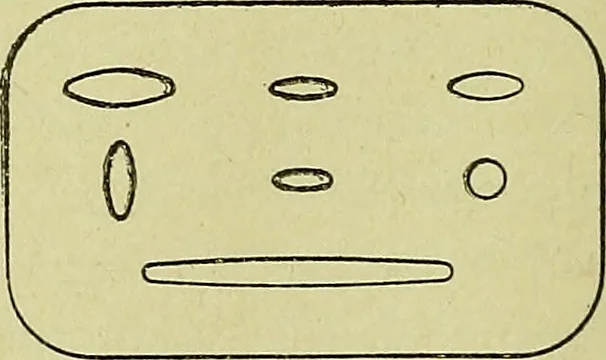

Pig. 3. Erasing Sliield Fig. 4. Metal Erasing Sliield long and i to | inch wide, Fig. 3. An erasing shield of thin metal,Fig. 4, is also very convenient, especially in erasing letters. Forcleaning drawings when they are completed, a sponge rubber or apreparation called art gum may be used, but in…
