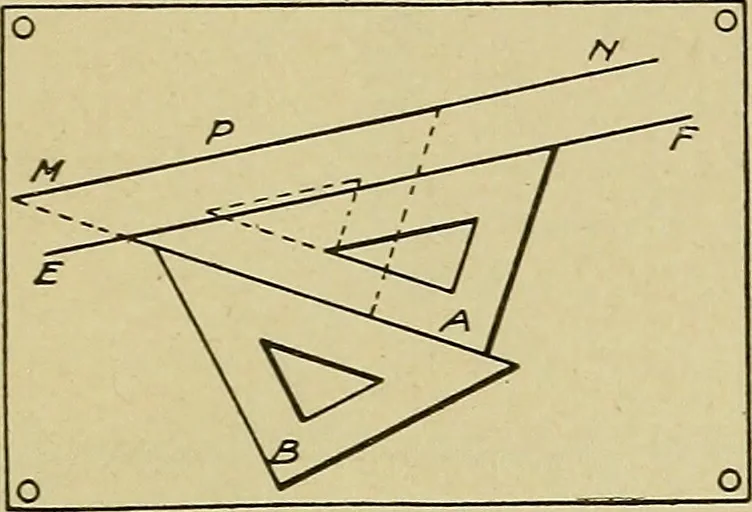

. Place the longest side of triangle A sothat it coincides with the line E F. Place the other triangle (or anystraight-edge) in the position of the triangle B; then holding B withthe left hand, place the triangle A in the position C, so that the longestside passes through the point D. A line may… … o o -^ -—-_ - o o Fig. 14. Drawing a Line Parallel to aGiven. Line Fig. 15. Drawing a Line Perpendicularto a Given Line It is possible to draw lines forming angles of 15 and 75 degrees byplacing the triangles as shown in Fig. 16.
