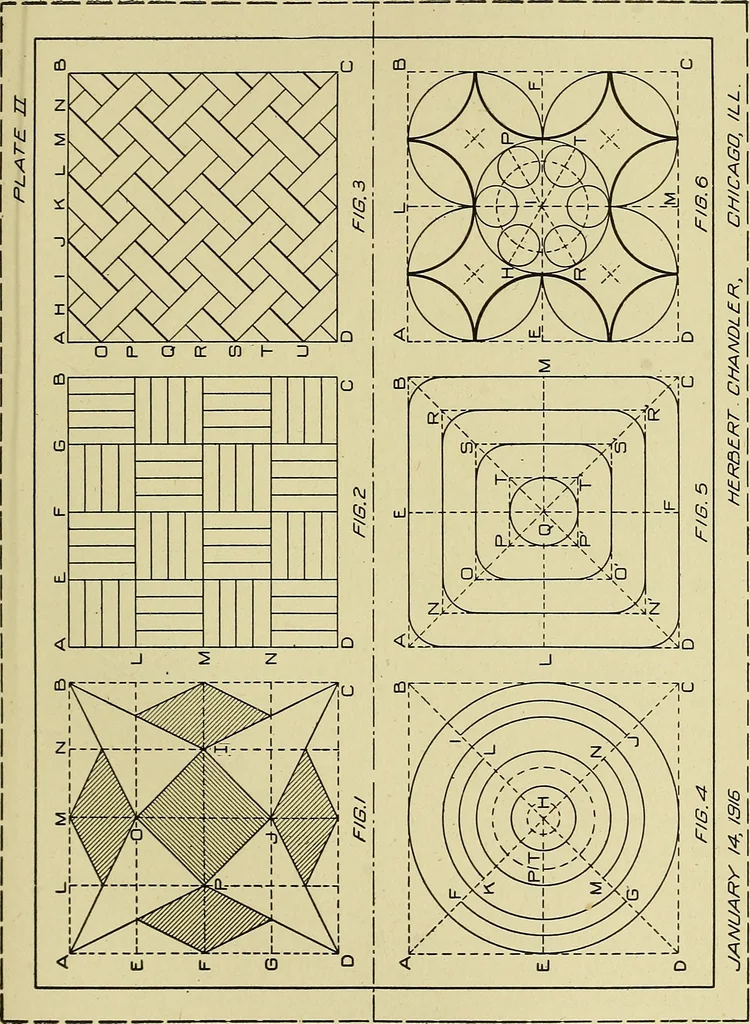

f lines F andL. Similarly draw D J, J C, CI, and I B. Also connect the points0, P, J, and I, thus forming a square. The four diamond-shapedareas are formed by drawing lines from the middle points of A D,AB,BC, and D C to the middle points of lines AP,AO,0 B,I B,etc., as shown in Fig. L Fig. 2 is an… … 101 36 MECHANICAL DRAWING G B, etc., into four equal parts—each \ inch—and draw light pencillines with the T-square and triangle as shown. In Fig. 3, divide A D and A B into eight equal parts, and throughthe points 0, P, Q, H, I, J, etc., draw horizontal and vertical lines.Now draw lines connecting…
