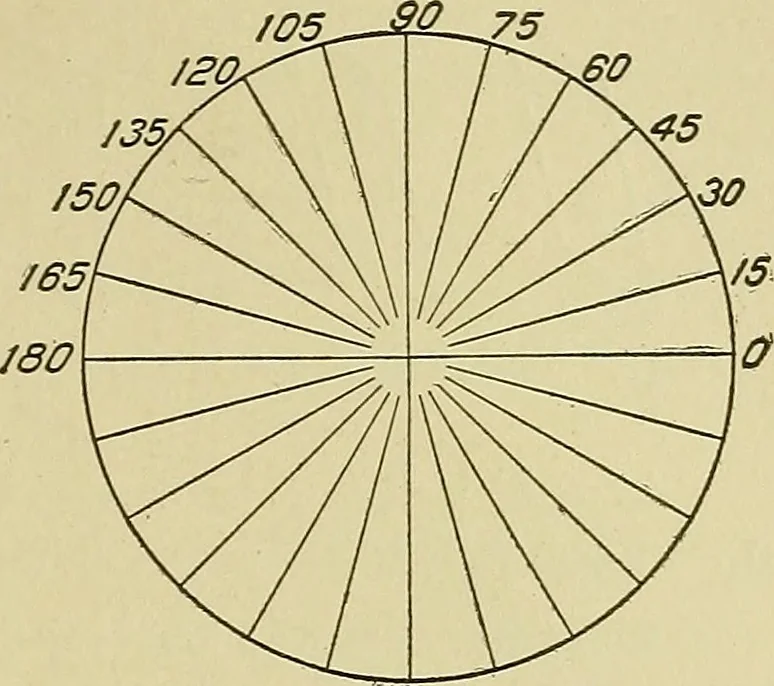

12 MECHANICAL DRAWING 47 In order that the size of an angle or arc may be stated with-out saying that it is a certain fraction of a circumference, the cir-cumference is divided into 360equal parts called degrees, Fig.67. Thus, it may be said thata certain angle contains 45 de-grees, i.e., it is 3Vo… … SOLIDS A solid has three dimensions—length, breadth, and thickness.The most common forms of solids are polyhedrons, cylinders, cones,and s-pheres. POLYHEDRONS A polyhedron is a solid bounded by planes. The bounding plane-Sare called faces and their intersections are called edges. The inter-sections…
