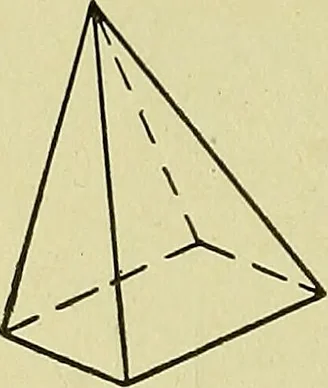

An illustration from Blueprint reading; a practical manual of instruction in blueprint reading through the analysis of typical plates with reference to mechanical drawing conventions and methods, the laws of projection, etc, 1919, leaf 193 — ar to thebases, it is called a right parallelopiped. A rectangular parallelopiped is a right parallelopiped whosebases and lateral faces are rectangles. Fig. 72. A cube is a rectangular parallelopiped all of whose faces aresquares. A truncated prism is the portion of a prism included betweenthe…
