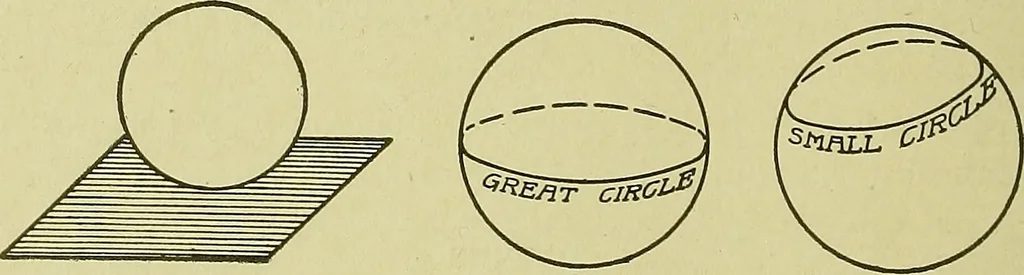

An illustration from Blueprint reading; a practical manual of instruction in blueprint reading through the analysis of typical plates with reference to mechanical drawing conventions and methods, the laws of projection, etc, 1919, leaf 195 — the base and a plane parallel to the base; its altitude is theperpendicular distance between the bases. \ PHERES A sphere is a solid bounded by a curved surface, every pointof which is equally distant from a point within called the center. The diameter is a straight line drawn through the center… … Fig. 83. Plane Tangent to Sphere Fig. 84. Great and Small Circle one point. A plane perpendicular to a radius at its outer extremityis tangent to the sphere. Fig. 83. An inscribed polyhedron is a polyhedron whose vertices lie in thesurface of the sphere. A circumscribed polyhedron is a polyhedron…
