Blueprint reading; a practical manual of instruction in blueprint reading through the analysis of typical plates with reference to mechanical drawing conventions and methods, the laws of projection, etc (1919)
Fairfield, Howard Parker, 1858-, Kenison, Ervin, Waite, Edward B. (Edward Broughton), 1873-, American Technical Society · Chicago, American technical society · leaf 229

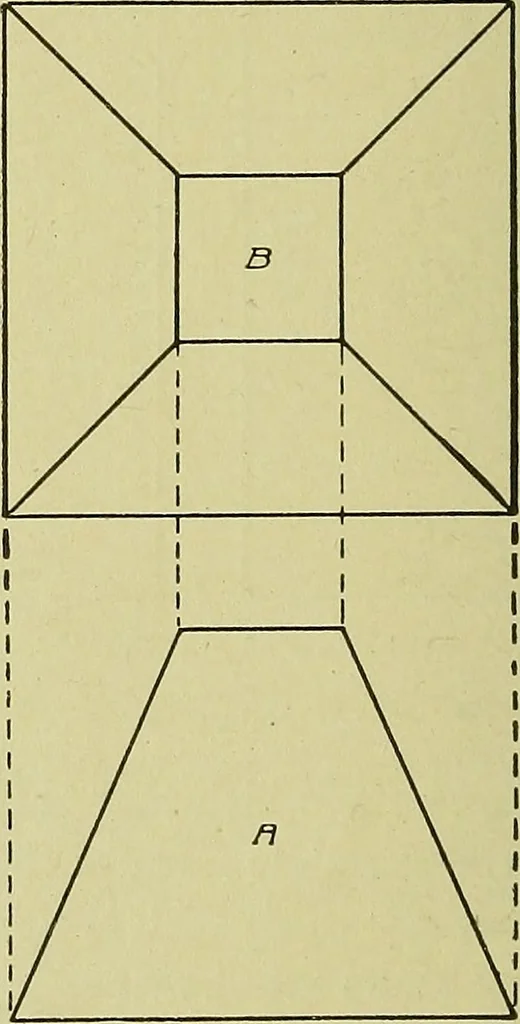

Fig. 110. Projections of Cyl-inder with Circular Hole Fig. 111. Projections of Frustumof Square Pyramid cular hole is shown by heavy dotted lines. Holes are always rep-resented in this way. The plan B, shows the shape of the top ofthe nut, and also the shape of the hole. 150 MECHANICAL DRAWING 85…
Mechanical drawing · Blueprinting
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
