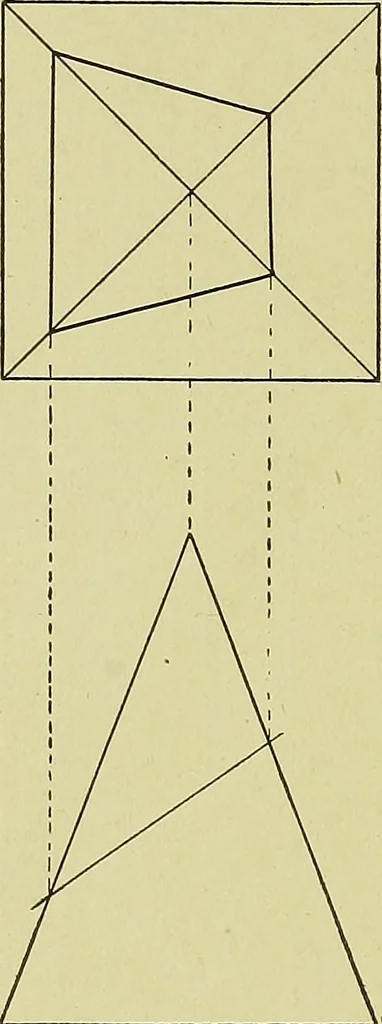

of the bases. 165 100 MECHANICAL DRAWING It is an invariable rule that when such a solid i^ cut by a planeparallel to its base, the section is a figure of the same shape as thebase. If then in Fig. 134 a right cone is intersected by a planeparallel to the base the section must be a circle, the… … Fig. 135. Intersection of Planeand Square Pyramid
