Blueprint reading; a practical manual of instruction in blueprint reading through the analysis of typical plates with reference to mechanical drawing conventions and methods, the laws of projection, etc (1919)
Fairfield, Howard Parker, 1858-, Kenison, Ervin, Waite, Edward B. (Edward Broughton), 1873-, American Technical Society · Chicago, American technical society · leaf 103

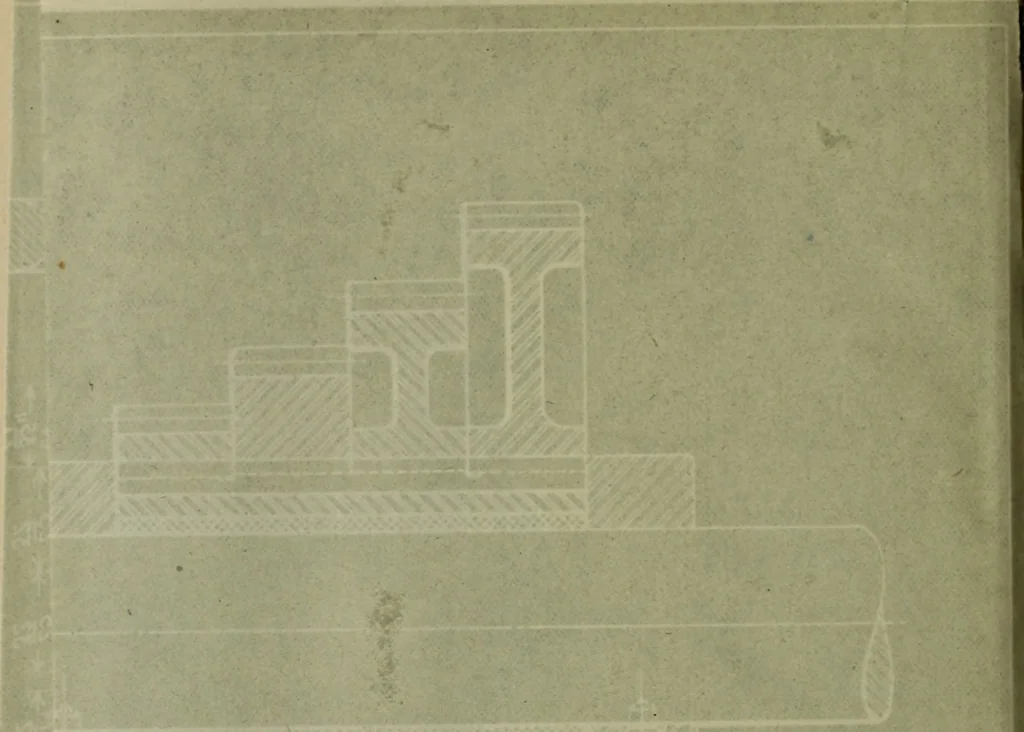

NAME DRAWING AS5£>BLED CONE GEARS | Kml USED ON 2-3-4-5-PA.UA-2-3-4-VA. 2(/#6rP/f- 3PM DRAWN B Y O.W. DATE. KB.PS.09 MAY 25, 10. | NO WANTED CHECKED *$■£■ THE CINCINNATI MILLING MACHINE CO BEBHill PARTNUMBER SUPERSEDES APPROVE!REMARKS >by CINCINNATI. OHIO. 15713 … BLUEPRINT READING 31 the valve body, consisting of a globular shaped casting withthreaded hexagon ends into which, on its upper side, is screwedthe valve cover casting with a threaded bearing for the longspindle; and an upper part, consisting of a stuffing box for the wickpacking. At the extreme…
Mechanical drawing · Blueprinting
