Blueprint reading; a practical manual of instruction in blueprint reading through the analysis of typical plates with reference to mechanical drawing conventions and methods, the laws of projection, etc (1919)
Fairfield, Howard Parker, 1858-, Kenison, Ervin, Waite, Edward B. (Edward Broughton), 1873-, American Technical Society · Chicago, American technical society · leaf 182

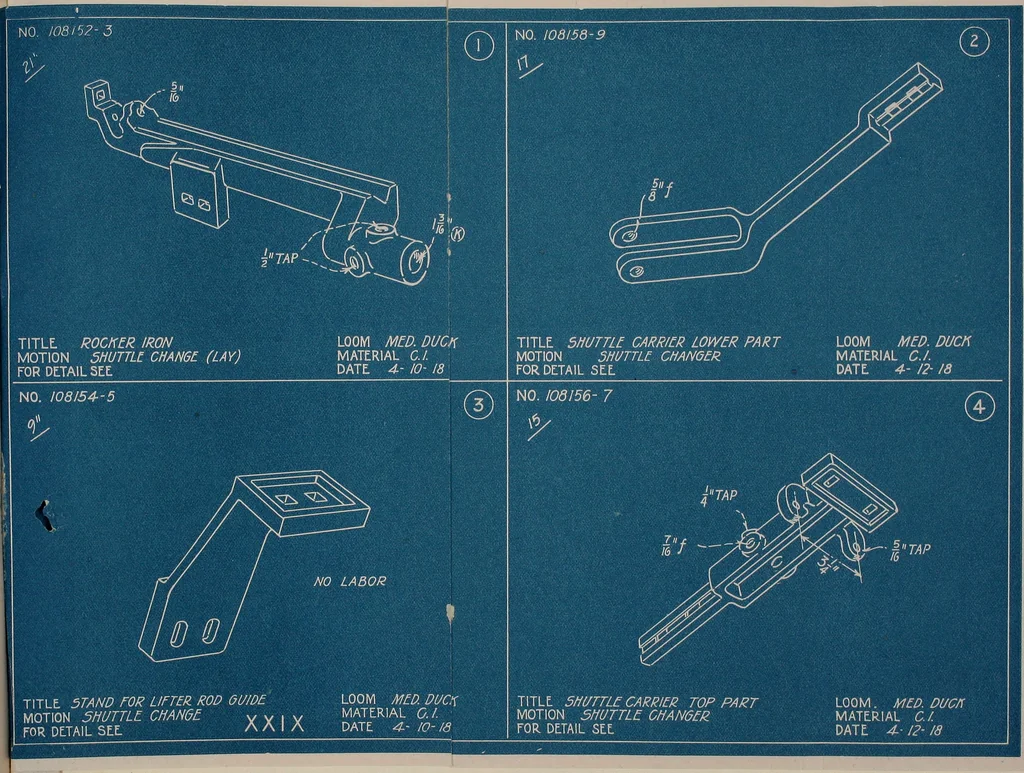

No. 1 tellsus that the piece is a rocker iron for a shuttle change motion on amedium duck loom and that the material is cast iron. BlueprintNo. - shows the lower part of a shuttle carrier; No. 3, a standfor a lifter; and No. 4, the top part of a shuttle carrier. In manyof these blueprints no… … hi of is In in tl hi el h 1( o: a ii 1( jH*J Mi) BLUEPRINT READING 47 left-hand corner in small numerals over or on a short line; forexample, the piece in blueprint No. 1 is 21 inches long. While thisdimension is of no value to the machinist, it does aid the storeskeeper in handling the castings,…
Mechanical drawing · Blueprinting
