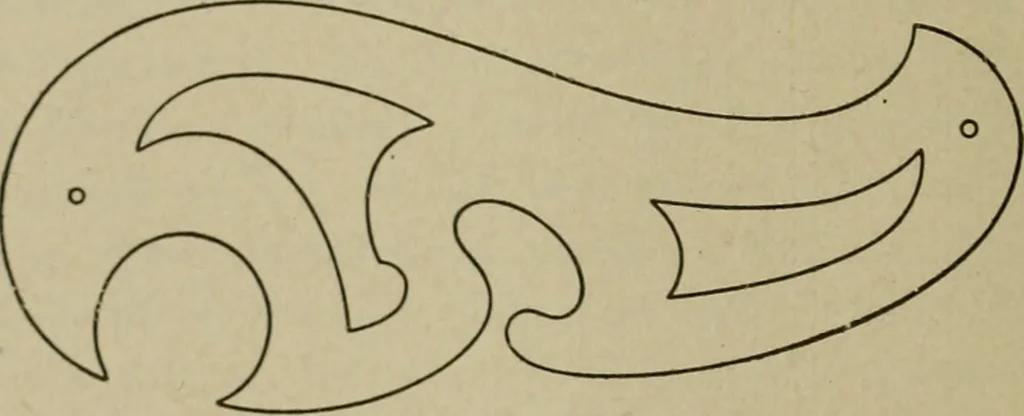

ftsmans< outfit is the Frt nch or irregular curve, which is used for drawing curvesother than arcs of circles, with either pencil or line pen. This instru-ment, which is made of wood, hard rubber, or celluloid—celluloidbeing the best—is made in various shapes, one of the most commonbeing shown… … Ii :. 32. Typical Irregular Curva a\. and draw the line through them, Fig. 33. Now shift the curveso as to include a part of the curve already drawn and two or threemore points. Draw the curve through these points, continuingthis process until the curve is completed. If, at each new setting,the…
