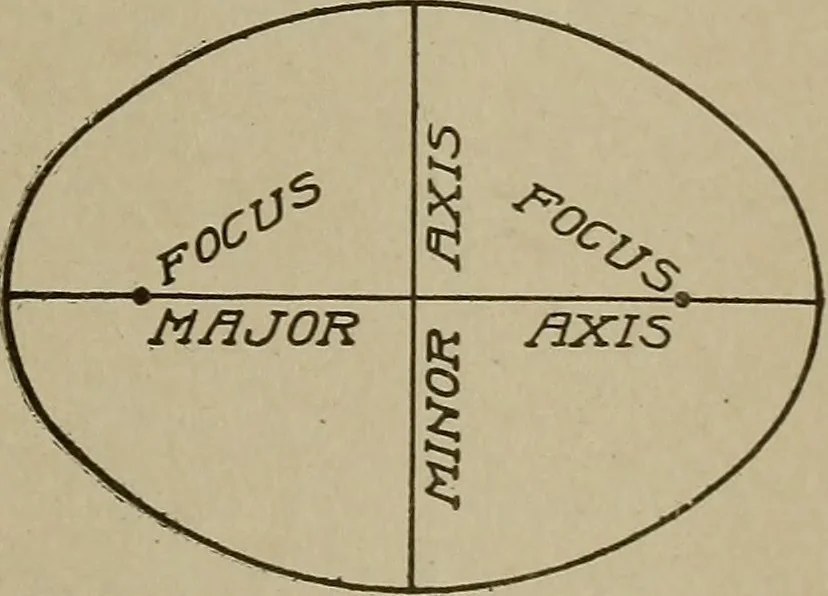

An illustration from Blueprint reading; a practical manual of instruction in blueprint reading through the analysis of typical plates with reference to mechanical drawing conventions and methods, the laws of projection, etc, 1919, leaf 272 — of the plane and the conical surfaceswill be the circumference of a circle. Ellipse. If a plane AB, Fig. 85a,cuts a cone oblique to the axis of thecone, but not cutting the base, the curveformed is called an ellipse, as shown inFig. 85b, this view being taken per-pendicular to the plane AB. If… … Fig. Diagram Showing Constantsof Ellipse 117 MECHANICAL DRAWING
