Blueprint reading; a practical manual of instruction in blueprint reading through the analysis of typical plates with reference to mechanical drawing conventions and methods, the laws of projection, etc (1919)
Fairfield, Howard Parker, 1858-, Kenison, Ervin, Waite, Edward B. (Edward Broughton), 1873-, American Technical Society · Chicago, American technical society · leaf 299

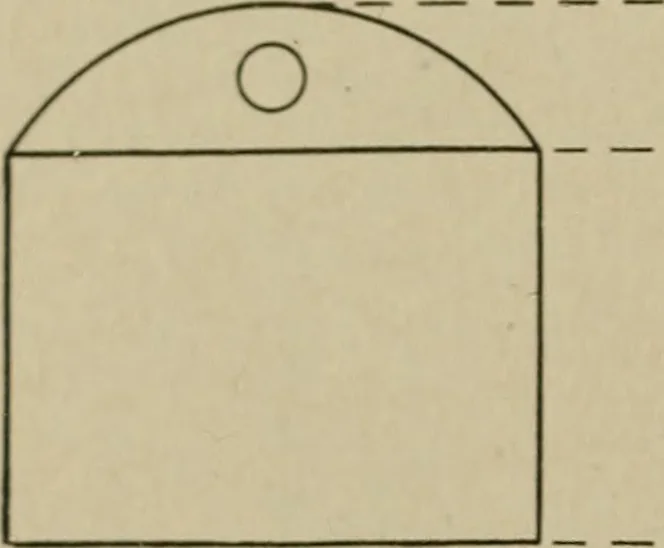

s,where the complete idea cannot be obtained from the front eleva-tion and plan views, an end view or both end views must be shownas in Fig. 100, which represents the projections of a box with acurved top. These end views are obtained by taking two or more (010 Plan ■ CO(0 k frontElevation Fig. 99.…
Mechanical drawing · Blueprinting
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
