Blueprint reading; a practical manual of instruction in blueprint reading through the analysis of typical plates with reference to mechanical drawing conventions and methods, the laws of projection, etc (1919)
Fairfield, Howard Parker, 1858-, Kenison, Ervin, Waite, Edward B. (Edward Broughton), 1873-, American Technical Society · Chicago, American technical society · leaf 330

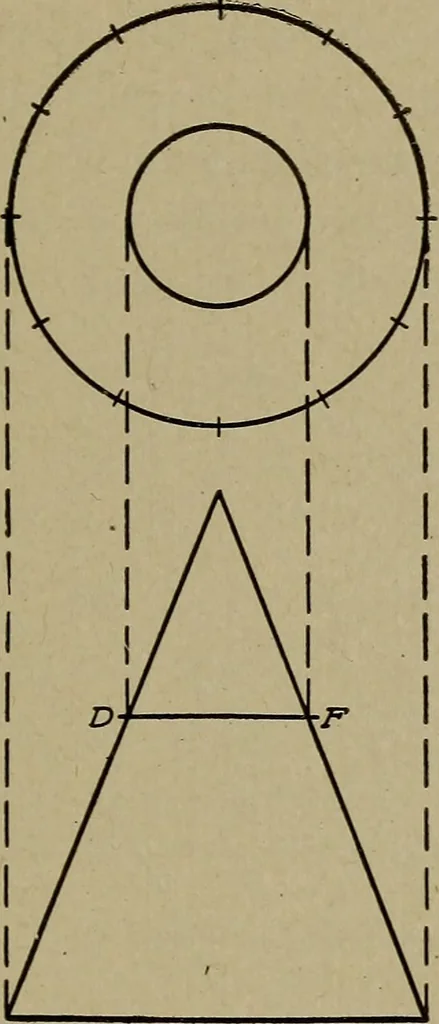

hen, consists of as manyrectangles joined together as the prism has sides, these rectanglesbeing the exact size of the faces of the prism, and in addition twopolygons the exact size of the bases. It will be found helpful indeveloping a solid to number or letter all of the corners on theprojections,…
