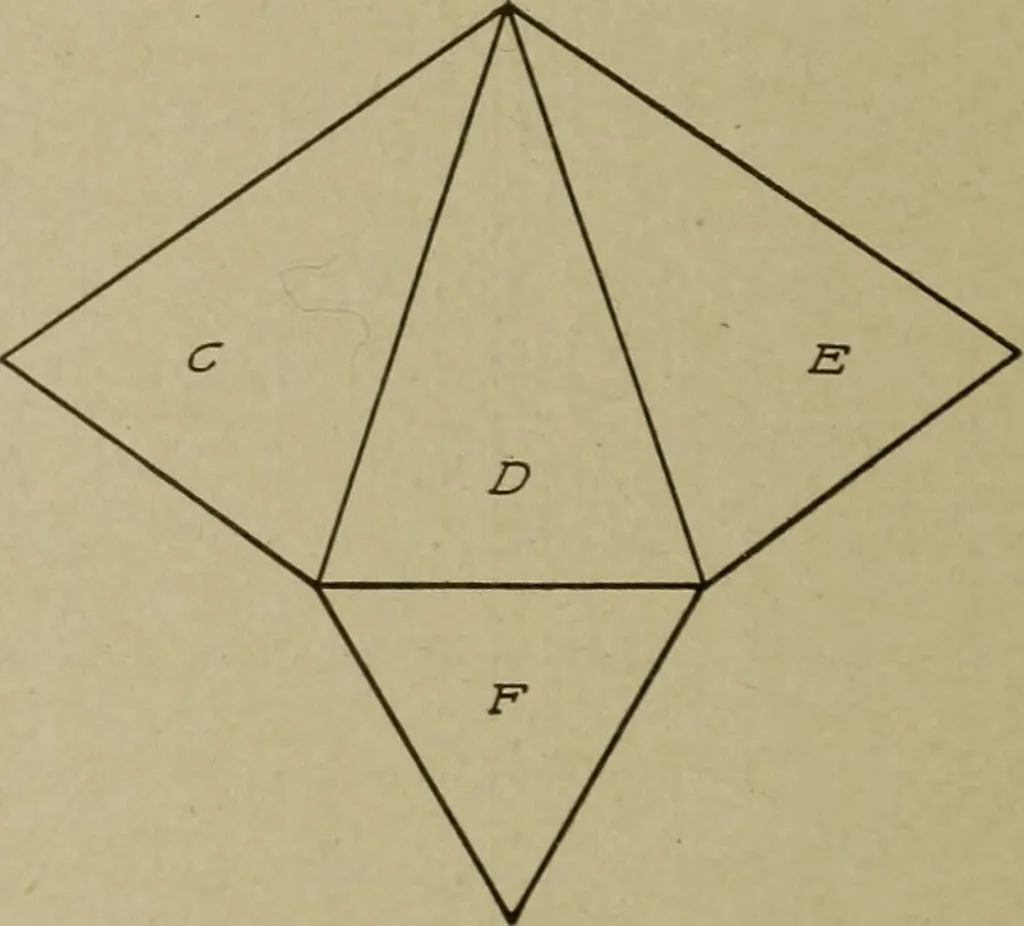

Plan and El< of Triangular Pyramid … Fig. 149. Development of Triangular Pyramid Regular Triangular Pyramid. Fig. 148 represents the plan andelevation of a regular triangular pyramid, and Fig. 149 its develop-ment, [f face C is placed on the plane its true size will be shownin the development. The true length of the base of triangle C…
