Blueprint reading; a practical manual of instruction in blueprint reading through the analysis of typical plates with reference to mechanical drawing conventions and methods, the laws of projection, etc (1919)
Fairfield, Howard Parker, 1858-, Kenison, Ervin, Waite, Edward B. (Edward Broughton), 1873-, American Technical Society · Chicago, American technical society · leaf 343

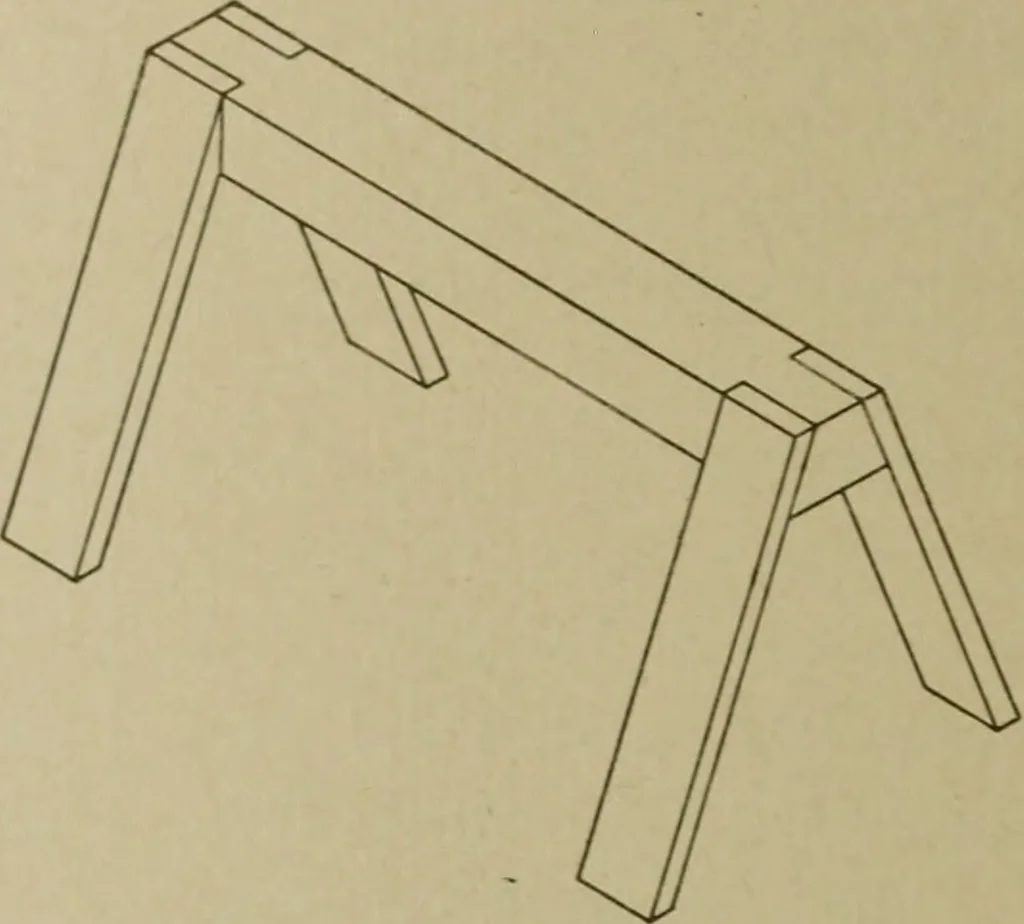

Fig. 167. Isometric of a Carpenters Bench 187 12: MECHANICAL DRAWING vertical height taken from the elevation locates the isometricof the point. … 8. Plan and Elevation ofSawfa Fig. 169. Isometric of Fig. 16S In like manner all the corners of the pyramid, including theapex, are located. The rule is, locate first in isometric the horizontal 1 Eleva- ■ 3
Mechanical drawing · Blueprinting
