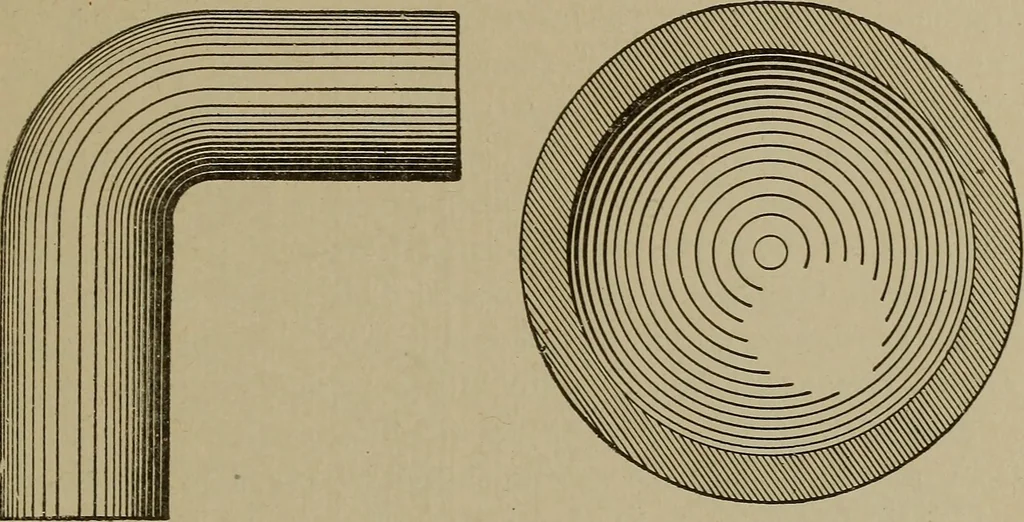

de elements heavier as well as closer together, as shown inIs I to L90. Concavity is shown in the same manner, the 192 MECHANICAL DRAWING 127 heavy shading always appearing on the left to indicate the deepershadow, Figs. 186 and 188. Fig. 184 is a cylinder showing the heaviest shade at the right,a… … Fig. 187. Shaded Elbow Joint Fig. 188. Shaded Section of Hollow Sphere zontal position, and Fig. 186 represents a section of a hollow verticalcylinder. Figs. 187 to 190 give other examples of familiar objects.
