Blueprint reading; a practical manual of instruction in blueprint reading through the analysis of typical plates with reference to mechanical drawing conventions and methods, the laws of projection, etc (1919)

Fairfield, Howard Parker, 1858-, Kenison, Ervin, Waite, Edward B. (Edward Broughton), 1873-, American Technical Society · Chicago, American technical society · leaf 36

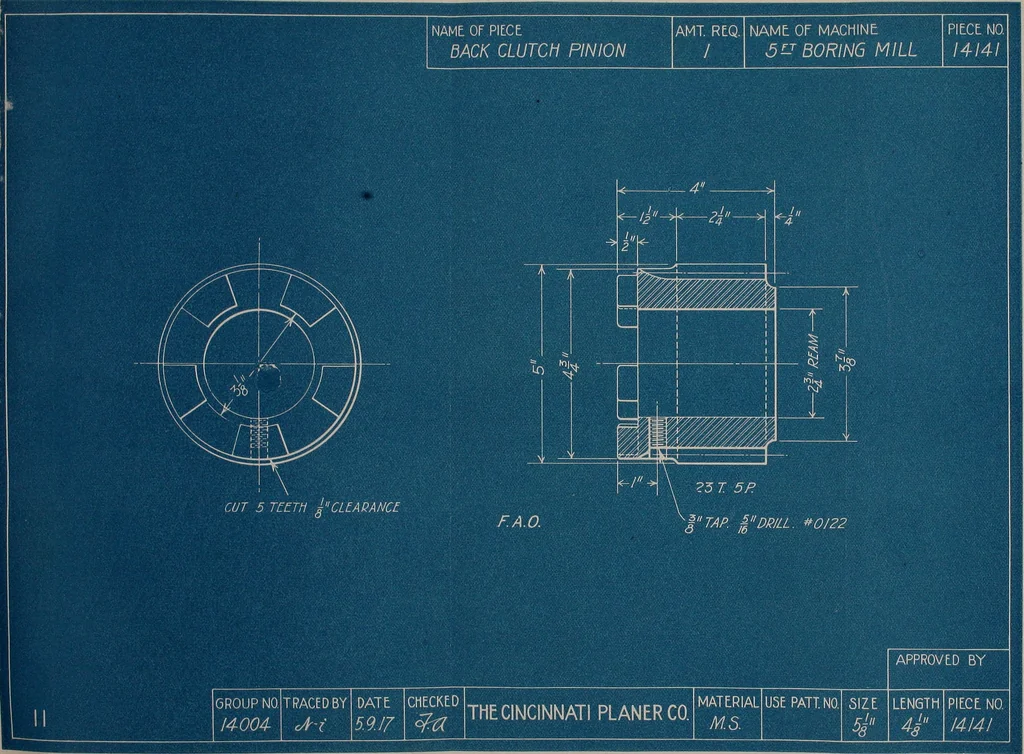

An illustration from Blueprint reading; a practical manual of instruction in blueprint reading through the analysis of typical plates with reference to mechanical drawing conventions and methods, the laws of projection, etc, 1919, leaf 36 — degrees with the working lines. Referringto Mechanical Drawing, Part I, page 35, it is scon that thecross-section lines are arranged to show that, as previously stated,the material is machinery steel. A- the first machine operation on this piece of work is that ofgetting a hole chucked through its…
