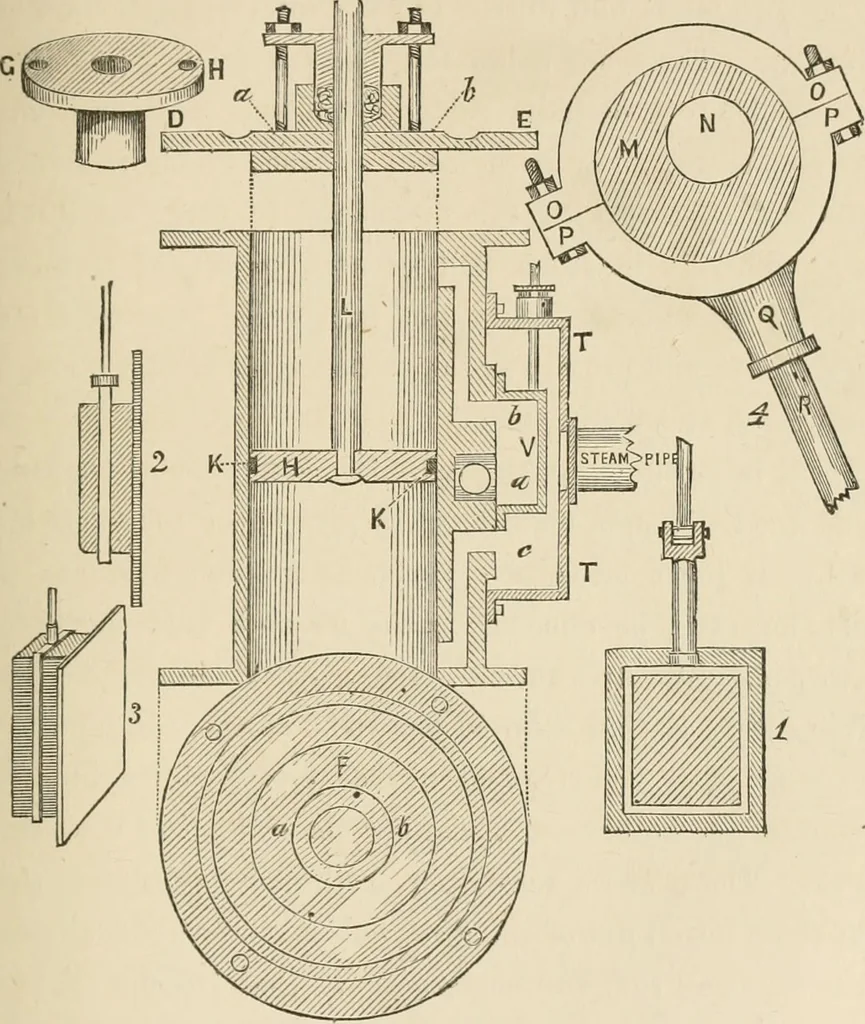

ngles to the bore of it, and the next thingto do was to turn up the cover or covers. There aregenerally two of these, but one is sometimes formed bythe bed-plate when the cylinder is to be placed vertically.Ours was to take this position, and therefore we onlyreeded one. This was a round disc cast… … Fig. 19. has to work. Fig. 19, DE and F represents this—Ybeing the top view or plan, and DE the section of the 224 BOY ENGINEERS. same througli the stuffing-box, which is shown as justready to be lowered into the gland, where it will be heldby the two studs and nuts. GF is the perspective view…
