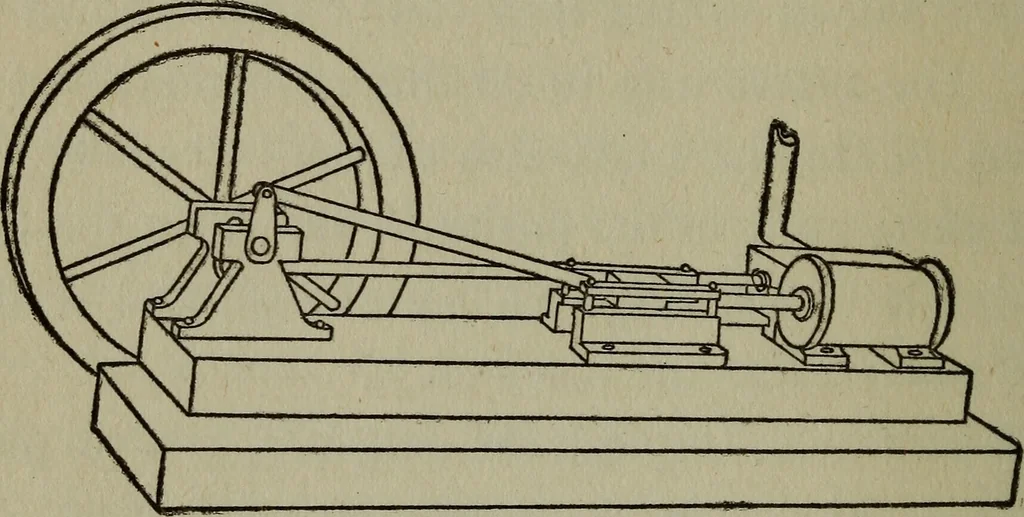

ot. You cannow bolt the parts to the bed plate and feel rea-sonably sure that each one will be in exactly theright place. Setting the Engine on Its Bed.—To raise the 88 The Boys Book of Engine-Building engine from the surface it is to set on high enoughfor the flywheel to clear it the bed plate… … Fig. 37. The Engine Complete bed plate to the bed and your engine is finishedand all ready to run. It is shown as it lookswhen done in Fig. 37. The Auxiliary Parts.—The steam pipe andfittings and the governor for this engine will bedescribed in Chapter VII, Auxiliary Parts forthe Steam Engine.…
