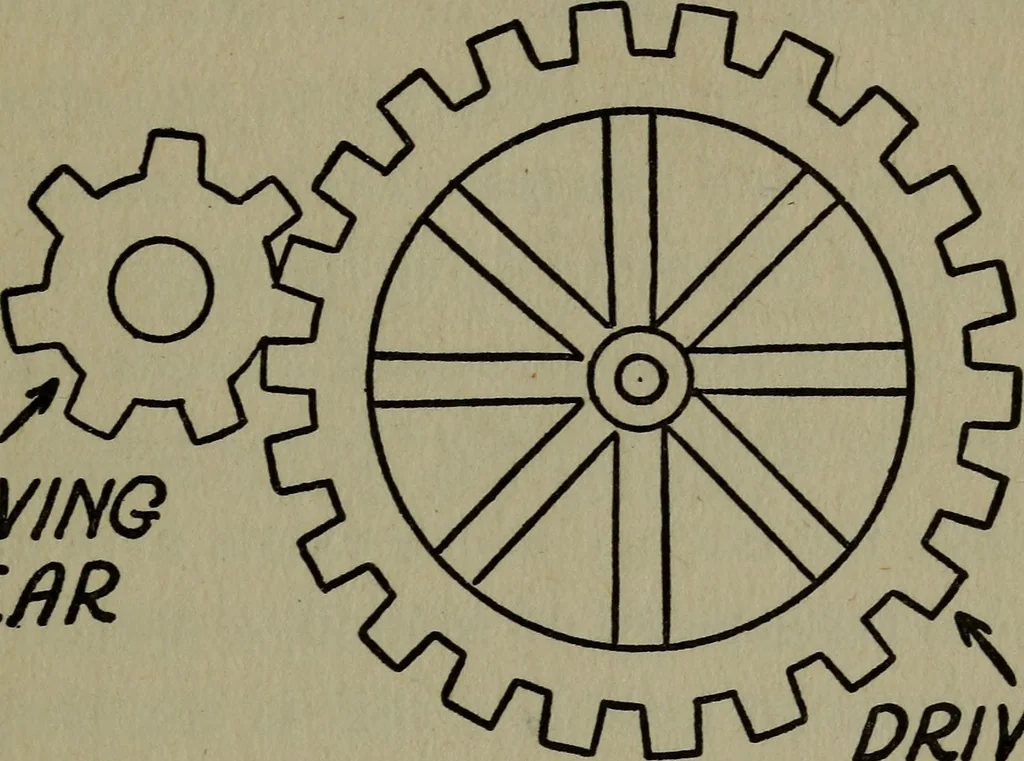

. 23. Sometimes there is a second small gear fixedto the shaft of the large gear; this small gear ismade to turn another large gear and this givesyou a double reduction gear. You can rig up areduction gear by using the wheels and pinionstaken from an old clock or you can buy them ^ Two Simple Steam… … / DRIVINGGEAR \ DRIVENGEAR Fig. 23. A Pair of Single Reduction Gears is both an impulse turbine like Brancas and itis also a reaction turbine like Heros. The Action of the Blades.—If you will turnback to Fig. 11 you will see that the steam fromthe nozzle, when it strikes the blades of the…
