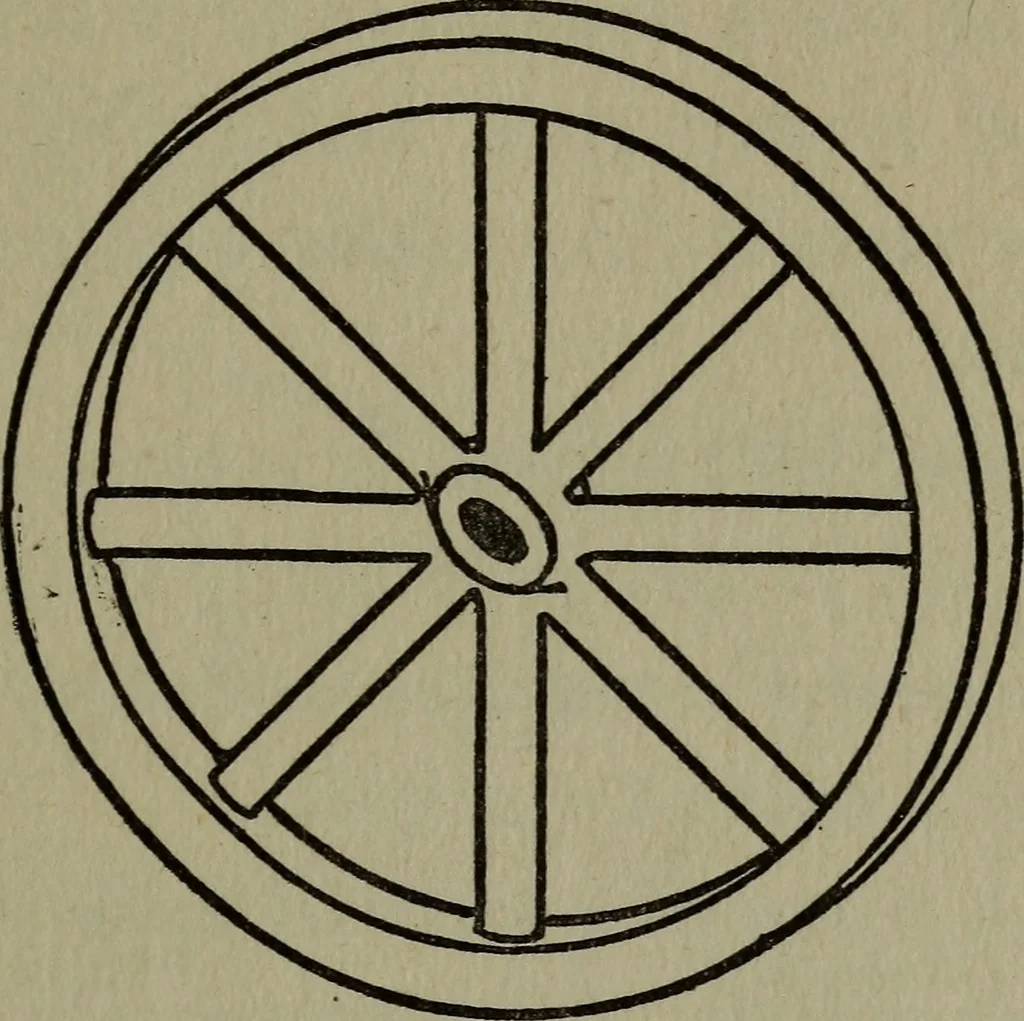

ll work forth and back without binding.When you have done this, go ahead and solderon the other head to the cylinder and the hardestpart of your engine is made. The Crankshaft, Flywheel and Pulley.—A A Simple Piston Steam Engine 51 straight piece of wire %2, or Vs inch thick and 3inches long will… … Fig. 25 B. A Spoked Fly-Wheel of brass Yi§ inch thick and % inch long, and makeone end % inch wide and the other end % inchwide; drill a Vi6-inch hole in the small end and a%-inch hole in the large end; fit in and solder oneend of the crankshaft to the crank and solder a/46-inch wire, % inch long,…
