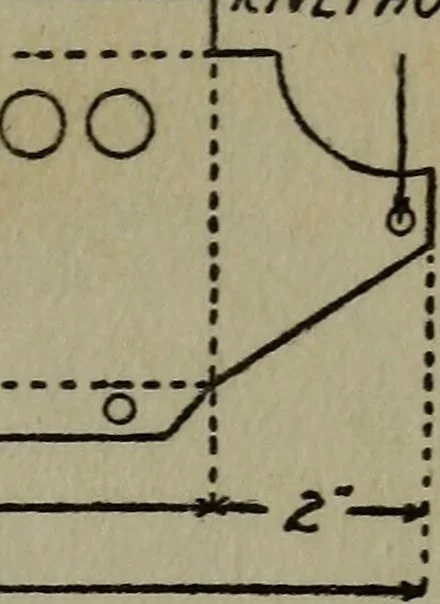

RlVETHOLE &^6^^<v/K~~6 00000 AIRHOLES : 6A6 i -3& 2 17k … Fig. 28 C. The Fire-Box base 1 inch thick, 5 inches wide and 7% incheslong. Screw the flanges of the box on the baseleaving a margin of V2 inch all round. Set theboiler in the concave ends of the box, as shownin Fig. 29, and bring the steam pipe up from theengine and bend it so that it will fit…
